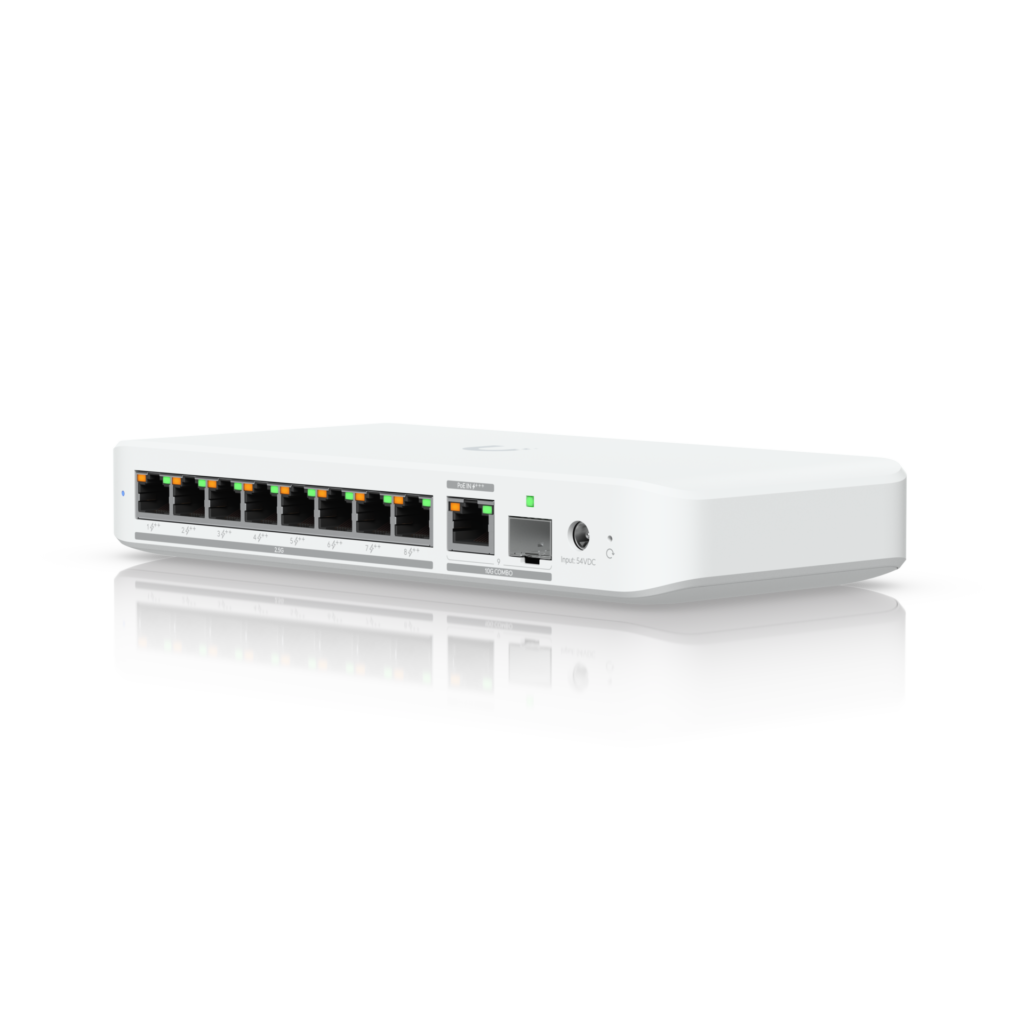

Ubiquiti USW Flex 2.5G 8 PoE: Specs, Features, Pros & Cons
The unusual thing here is that the switch can be powered over Ethernet itself. Its 10 Gigabit copper port doubles as a power input, so an upstream switch can run this one down a single cable, which solves the real problem of putting network equipment behind a television, in an attic or on a rail where there is no outlet.
Supply it from Ubiquiti's power adapter instead and it turns into a much more capable device: a shared budget approaching two hundred watts for the eight downstream ports, every one of them capable of the higher power standard. Run it on Ethernet power alone and that budget shrinks accordingly, so the same hardware behaves quite differently depending on how you feed it. Decide which mode you want before ordering, because the adapter is a separate purchase.
The ports themselves are eight 2.5 Gigabit sockets plus one 10 Gigabit uplink that runs over that copper port or a fiber module, which is a sensible spread for access points and cameras that have moved past gigabit without needing ten. Internally it can carry every port at once without contention, so nothing is oversubscribed behind the sockets.
It is fully managed through the same controller as the rest of the range, with VLANs and the usual segmentation, and it draws very little when idle.
The limitations are worth stating: Ubiquiti lists no link aggregation for it, and there are no plain gigabit ports if you were hoping to mix older equipment cheaply. As with everything in this ecosystem, it makes most sense alongside other UniFi hardware and least sense as a standalone purchase.
Category strengths
Where the Ubiquiti USW Flex 2.5G 8 PoE beats the median
- More PoE ports ?8 vs 4 (median)
- More 2.5G ports ?8 vs 0 (median)
- More 10G ports ?1 vs 0 (median)
- A much higher switching capacity ?60 Gbps vs 40 Gbps (median)
- A much higher PoE budget ?196 W vs 135 W (median)
- More SFP/SFP+ ports ?1 vs 0 (median)
- A higher forwarding rate ?45 Mpps vs 32.73 Mpps (median)
- Has cloud management ?
- A lower power consumption ?17 W vs 26.5 W (median)
Where the Ubiquiti USW Flex 2.5G 8 PoE trails the median
- No link aggregation ?
- No IGMP snooping ?
- No metal housing ?
- A much lower MAC address table ?4 K vs 16 K (median)
How this VS Score was computed
Score 68: each known spec is measured against the median of all network switches (17 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 91% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| PoE ports | 8 | 4 | 1.2 | +60.0 |
| 2.5G ports | 8 | 0 | 1 | +50.0 |
| 10G ports | 1 | 0 | 0.8 | +40.0 |
| VLAN support | Yes | 59% of the class have it | 0.8 | +40.0 |
| Switching capacity | 60 | 40 | 1.5 | +37.5 |
| PoE budget | 196 | 135 | 1.2 | +27.6 |
| SFP/SFP+ ports | 1 | 0 | 0.5 | +25.0 |
| Management level | Fully managed | Smart managed | 1 | +25.0 |
| Link aggregation | No | 53% of the class have it | 0.5 | −24.0 |
| Cloud management | Yes | 50% of the class have it | 0.4 | +20.0 |
| Forwarding rate | 45 | 32.73 | 0.8 | +15.2 |
| IGMP snooping | No | 60% of the class have it | 0.3 | −14.4 |
| Metal housing | No | 87% of the class have it | 0.3 | −14.4 |
| Rack-mountable | No | 35% of the class have it | 0.3 | −14.4 |
| Power consumption | 17 | 26.5 | 0.5 | +14.0 |
| PoE standard | PoE++ (802.3bt) | PoE+ (802.3at) | 0.8 | +13.6 |
| MAC address table | 4 | 16 | 0.3 | −11.1 |
| Total ports | 10 | 10 | 2 | +0.0 |
| Gigabit ports | 0 | 0 | 1.5 | +0.0 |
Not scored: Jumbo frame support (standard for the class (100% have it)); Quality of Service (QoS) (unknown: not scored); Fanless (unknown: not scored).
Editor’s note
Ubiquiti lists the 10 GbE RJ45 port and the SFP+ cage as a single combo uplink. The switch has one 10G path out, copper or fiber, and the two cannot carry traffic side by side. When the switch takes its power through that copper port, the same cable is the natural uplink, and Ubiquiti does not say whether the SFP+ cage can carry the data while the RJ45 side only supplies power. Plan on fiber only with the adapter.
The budget figures make the choice concrete. On PoE+++ input Ubiquiti gives the eight ports 76 W between them, on PoE++ input 46 W and on PoE+ input 16 W, against 196 W with the 210 W adapter. Fed from upstream, it can power two PoE+ access points at full allocation with a little left over, not eight devices. Each port can still supply up to 64 W when the budget allows it.
The Layer 2 list is shorter than on Ubiquiti's Lite and Pro switches. There are 256 VLANs, storm control, port isolation and mirroring, but no LACP and no IGMP snooping. Without snooping, multicast streams such as IPTV or some multiroom audio systems are flooded to every port in the VLAN, which a handful of access points and cameras will tolerate and a busy AV network will not.
The polycarbonate case is rated from -20 to 45 degrees Celsius and mounts on a desk or wall, with DIN-rail and magnetic mounts sold separately, so it fits behind a TV, in an attic or inside an equipment cabinet. I would buy it for exactly that kind of awkward spot in a UniFi house, and pick something else for a main closet.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 17 network switches this VS Score is measured against.
Ports
Power over Ethernet
Performance
Management
Design & power
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Ubiquiti USW Flex 2.5G 8 PoE and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Management level: Fully managed. Expect a web interface or cloud dashboard to configure it, which is where VLANs, link aggregation and QoS are set up.
Ports: 10 in total, of which an unspecified number are Gigabit and 1 are 10 Gigabit.
PoE budget is 196 W shared across the powered ports — add up the draw of the cameras, phones and access points you intend to hang off it before assuming they all fit.
Throughput expectations
Switching capacity is 60 Gbps, enough for every port to run flat out at once — the usual case for a home or small-office switch.
Jumbo frames are supported, which helps large file transfers between NAS and desktop.
Firmware and subscriptions
Set-up and day-to-day management run through the manufacturer’s cloud service, so that account’s availability and privacy terms are part of the product.
Security support
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Known limitations
Not offered, according to the spec sheet: link aggregation, iGMP snooping, metal housing, rack-mountable.
2 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
We have not found a published firmware support-lifetime commitment for this model. Update policies differ widely between brands; check the support page linked under Sources and verification before relying on it for a long deployment, and treat a device that has stopped receiving security updates as due for replacement.
Sources and verification
Where the specifications come from
- Official product pagetechspecs.ui.com
- Retailer listing (cross-check)amazon.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 20 of 22 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Network Switches with similar specs to the Ubiquiti USW Flex 2.5G 8 PoE
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Ubiquiti USW Flex 2.5G 8 PoE earns a VS Score of 68, above the median of the 17 network switches it is measured against (a score of 50 is level with that median).
- Who it’s for
- A UniFi network that needs a few 2.5G PoE++ access points or cameras in a spot with no outlet, fed and powered down a single cable from a PoE+++ port upstream.
- Who should look elsewhere
- Networks without a UniFi controller, and sites that stream multicast TV or audio, since Ubiquiti lists no IGMP snooping for this model.
- The trade-off that matters
- Every setting lives in UniFi Network, so the switch is easy to run inside a UniFi site and offers nothing as a standalone managed switch.
- The main alternative
- TRENDnet TPE-BG350: four PoE++ ports at up to 95 W in a fanless metal case with nothing to configure, for a small camera or access-point drop outside UniFi.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable network switches — a shortlisting guide, not a substitute for your own priorities. See how we score.
