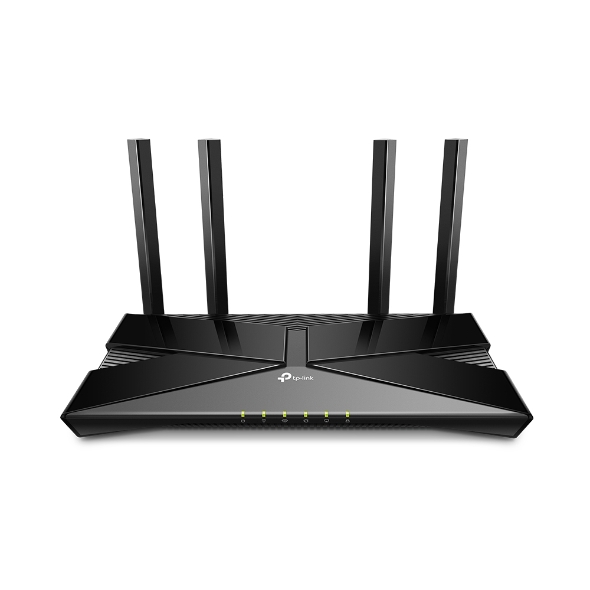

TP-Link Archer AX10: Specs, Features, Pros & Cons
AX1500 decodes to 1,201 Mbps on 5 GHz and 300 Mbps on 2.4 GHz. That is a two-stream radio on 80 MHz channels, with no wider channels available and no third band, and knowing the arithmetic makes this router easy to place: it is the entry point to Wi-Fi 6 with nothing concealed in the specification.
The part of the standard that helps a normal home is present, though, and it is not the peak speed. OFDMA and MU-MIMO are about serving many devices efficiently at once, which is what an apartment full of phones, speakers, a TV and a doorbell demands. A router that handles twenty small clients gracefully beats one with a bigger number on the box and worse scheduling.
TP-Link has also included things that usually appear further up the range: WPA3, a VPN server that speaks both OpenVPN and WireGuard (useful for reaching your home network from a hotel), guest networks on both bands, traffic prioritization by device, and mesh support so a compatible extender can be added later.
The limits are all wired. Every port is gigabit, WAN included, so a broadband plan faster than a gigabit will be capped by the router rather than served by it. There is no 6 GHz band and no multi-gig anything.
None of that is a criticism, only a boundary. For a small home on a gigabit-or-slower connection that mostly needs many modest devices to coexist, this does the job without pretending otherwise. For anything faster or larger, the ceiling arrives quickly and is not negotiable.
Category strengths
Where the TP-Link Archer AX10 trails the median
- A much lower max wireless speed ?1,501 Mbps vs 7,876 Mbps (median)
- No 6 GHz band ?
- A much lower WAN port speed ?1 Gbps vs 2.5 Gbps (median)
- No multi-gig LAN ?
- Fewer frequency bands ?2 vs 3 (median)
- No link aggregation ?
How this VS Score was computed
Score 17: each known spec is measured against the median of all wi-fi routers (26 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 48% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 7 | 2 | −96.0 |
| Max wireless speed | 1,501 — capped at the class’s lower range (1,775) | 7,876 | 2 | −78.0 |
| 6 GHz band | No | 52% of the class have it | 1 | −48.0 |
| WAN port speed | 1 | 2.5 | 1.5 | −45.0 |
| Multi-gig LAN | No | 69% of the class have it | 0.8 | −38.4 |
| Frequency bands | 2 | 3 | 1 | −17.0 |
| Link aggregation | No — held to half its range (class of fewer than six) | 80% of the class have it | 0.3 | −7.5 |
| LAN ports | 4 | 4 | 1 | +0.0 |
| Antennas | 4 | 4 | 0.3 | +0.0 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (standard for the class (100% have it)); OFDMA (standard for the class (100% have it)); Beamforming (standard for the class (100% have it)); Max connected devices (unknown: not scored); USB ports (unknown: not scored); Processor cores (unknown: not scored); Processor speed (unknown: not scored); RAM (unknown: not scored); WPA3 (standard for the class (100% have it)); Mesh support (standard for the class (94% have it)); Guest network (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (standard for the class (100% have it)); VPN server (standard for the class (100% have it)); App control (standard for the class (100% have it)); Built-in security suite (unknown: not scored); Weight (unknown: not scored); Wall-mountable (unknown: not scored).
Editor’s note
TP-Link's standards line for the AX10 gives the upper band IEEE 802.11ax/ac/n/a and the lower band IEEE 802.11n/b/g. Only one band is Wi-Fi 6. The other is a Wi-Fi 4 radio, and that is the band with the longer reach. A Wi-Fi 6 phone that falls back to it in a far bedroom drops to Wi-Fi 4 rates and loses OFDMA there, and so does any newer Wi-Fi 6 camera or plug that only uses the lower band.
The Archer AX21 (V5) is the nearest fix in TP-Link's range. Its datasheet lists 802.11ax on both bands with the same gigabit port layout, so the far rooms keep the newer standard as well.
Three hardware revisions have been sold under the AX10 name, and the US download page now covers the V3.6 only. Its product page gives no processor or memory figure, so a used or older unit may run a different chipset and firmware line from the one described here, and the label underneath is the only way to tell.
TP-Link prints the 802.11n line in its specification table, and for a small apartment where every laptop and phone sits within easy reach of the upper band, the older lower radio rarely comes into play. Those are the homes where the AX10 earns its place. In a house with distant rooms the AX21 is the better buy for that one reason.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 26 wi-fi routers this VS Score is measured against.
Wireless
Ports & wired
Hardware
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the TP-Link Archer AX10 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The WAN (internet) port is rated at 1 Gbps. An internet plan faster than that is capped at the router, and nothing on the network can download faster than this port regardless of the wireless figures.
There are 4 LAN ports, all Gigabit; a switch is needed for more wired devices.
Throughput expectations
The Wi-Fi 6 headline of 1,501 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
There is no 6 GHz band, so the least congested spectrum available to new phones and laptops is not on offer here.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
TP-Link's US page for the Archer AX10 covers hardware version V3.6. The latest firmware, 1.3.3 (Build 20260616), was published September 8, 2026 and is described as a security and stability update, following a November 2025 build. Firmware installs from the web page or the Tether app, and the router supports automatic and over-the-air upgrades.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
VPN support is built in, which avoids a subscription to a third-party VPN router service for remote access.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Mesh support means coverage can be extended later with a compatible satellite instead of replacing the router.
Known limitations
Not offered, according to the spec sheet: 6 GHz band, multi-gig LAN, link aggregation.
9 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
The support page carries the V3.6 user guide, datasheet and quick installation guide, along with FAQs, a web-interface emulator, GPL code and the community forum. The AX10 does not list HomeShield, so its security features are the router's own SPI firewall, access control and address binding, and parental controls are limited to URL filtering and time controls.
Sources and verification
Where the specifications come from
- Official product pagetp-link.com
- Datasheet or manualstatic.tp-link.com
- Support and firmware documentationtp-link.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 19 of 28 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Wi-Fi Routers with similar specs to the TP-Link Archer AX10
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The TP-Link Archer AX10 earns a VS Score of 17, below the median of the 26 wi-fi routers it is measured against (a score of 50 is level with that median).
- Who it’s for
- A small apartment whose broadband tops out at a gigabit, where recent phones and laptops stay close to the router and a WireGuard server at home is a welcome extra.
- Who should look elsewhere
- A home with distant rooms or newer Wi-Fi 6 smart-home devices, since the longer-reaching band runs the older radio, and anyone whose broadband runs above a gigabit.
- The trade-off that matters
- Wi-Fi 6 on one band only. This route into the standard keeps an older radio on the band that reaches farthest and that many smart-home devices use.
- The main alternative
- TP-Link Archer AX21 (V5): the same gigabit ports with Wi-Fi 6 on the lower band too, the better fit for homes with far rooms or newer smart-home gear.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable wi-fi routers — a shortlisting guide, not a substitute for your own priorities. See how we score.
