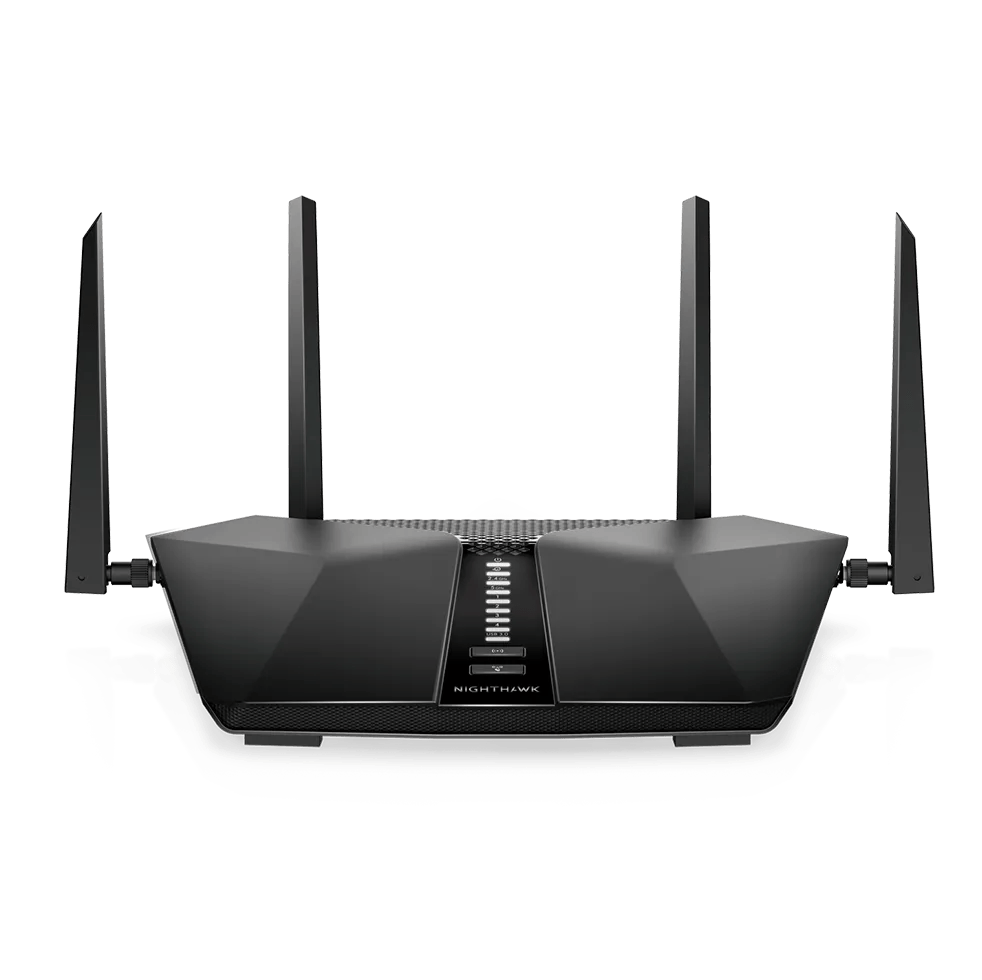

NETGEAR Nighthawk RAX50: Specs, Features, Pros & Cons
The RAX50 is the Nighthawk that Netgear built around a specific trick: a four-stream 5 GHz radio with 160 MHz channel support, which is what lets a single Wi-Fi 6 laptop or phone pull more than a gigabit over the air. That is the AX5400 badge (600 megabits on 2.4 GHz and 4.8 gigabits on 5 GHz), and it is the reason this router was, for a while, the sensible mid-range pick in the range.
It is a dual-band router with four external antennas, a 1.5 GHz triple-core, 512 MB of RAM and 256 MB of flash, five gigabit ports in the usual one-WAN-four-LAN layout, and a single USB 3.0 port. There is no multi-gig socket at all. At 566 grams it is a substantial piece of hardware rather than a small box on a shelf.
The software is the standard Nighthawk set (WPA3, guest network, an OpenVPN server, Beamforming+, OFDMA and the Nighthawk app), with the usual Netgear footnotes. Armor turns into a paid subscription once its included period ends, and the basic tier of Smart Parental Controls is built in while the Premium tier is not. Netgear recommends it for medium to large homes and up to 25 connected devices.
Netgear's own product page now redirects to the support center rather than a store listing, which usually means the model is no longer sold direct, though it remains widely available at retail and still receives firmware.
Where it sits today is as a former flagship. Netgear's current line has moved on to Wi-Fi 7 and to multi-gig sockets, so this is a router bought for what its radio still does rather than for the badge on the box.
Category strengths
Where the NETGEAR Nighthawk RAX50 beats the median
- A higher coverage area ?2,500 sq ft vs 2,000 sq ft (median)
- A lighter build ?566 g vs 762.5 g (median)
Where the NETGEAR Nighthawk RAX50 trails the median
- No 6 GHz band ?
- A much lower WAN port speed ?1 Gbps vs 2.5 Gbps (median)
- No multi-gig LAN ?
- A lower max wireless speed ?5,400 Mbps vs 7,876 Mbps (median)
- No built-in security suite ?
- Fewer max connected devices ?25 vs 189 (median)
- Much less RAM ?512 MB vs 1,024 MB (median)
- Fewer frequency bands ?2 vs 3 (median)
- Fewer processor cores ?3 vs 4 (median)
How this VS Score was computed
Score 27: each known spec is measured against the median of all wi-fi routers (26 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 70% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 7 | 2 | −96.0 |
| 6 GHz band | No | 52% of the class have it | 1 | −48.0 |
| WAN port speed | 1 | 2.5 | 1.5 | −45.0 |
| Multi-gig LAN | No | 69% of the class have it | 0.8 | −38.4 |
| Max wireless speed | 5,400 | 7,876 | 2 | −32.0 |
| Built-in security suite | No | 52% of the class have it | 0.5 | −24.0 |
| Max connected devices | 25 | 189 | 0.5 | −21.5 |
| Coverage area | 2,500 | 2,000 | 1.5 | +19.5 |
| RAM | 512 | 1,024 | 0.7 | −17.5 |
| Frequency bands | 2 | 3 | 1 | −17.0 |
| Processor cores | 3 | 4 | 0.5 | −6.0 |
| Weight | 566 | 762.5 | 0.2 | +3.4 |
| LAN ports | 4 | 4 | 1 | +0.0 |
| USB ports | 1 | 1 | 0.3 | +0.0 |
| Processor speed | 1.5 | 1.5 | 0.5 | +0.0 |
| Antennas | 4 | 4 | 0.3 | +0.0 |
Not scored: MU-MIMO (unknown: not scored); OFDMA (standard for the class (100% have it)); Beamforming (standard for the class (100% have it)); Link aggregation (unknown: not scored); WPA3 (standard for the class (100% have it)); Mesh support (unknown: not scored); Guest network (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (unknown: not scored); VPN server (standard for the class (100% have it)); App control (standard for the class (100% have it)); Wall-mountable (unknown: not scored).
Editor’s note
The case for this Nighthawk rests on the 5 GHz radio, and that case is still good. A four-stream, wide-channel configuration on 5 GHz is something a lot of newer two-stream Wi-Fi 7 routers do not match, and if the devices in your house are Wi-Fi 6 laptops and phones rather than Wi-Fi 7 ones, that extra radio is shared among them instead of sitting idle for want of Wi-Fi 7 clients.
The processor and memory back that up. A triple-core with half a gigabyte of RAM was generous when this launched, and it leaves headroom for the OpenVPN server and the Nighthawk app.
Where it shows its age is the WAN port. Gigabit only, in a market where 2-gigabit plans are increasingly ordinary, means the fast radio can never be fed faster than a gigabit from the internet. That is fine for streaming and limiting for anyone who bought a faster plan for downloads.
What would make me hesitate is the same thing that would make me hesitate on every Nighthawk in this class: the subscriptions. The included Armor period is 30 days on the data sheet and a year on NETGEAR's current Canadian product page, and the parental controls that matter most sit behind the Premium tier. Buyers who want that filtering permanently should plan for the yearly fee or look at brands that bundle it.
There is also no mesh option. If the rated coverage does not stretch to the whole house, the answer is a different product rather than an add-on node.
The summary I would give a friend is that the radio is better than the router around it, and that the gap only widens as internet plans get quicker. This is a good buy for what it does today and a poor one to plan the next five years around.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 26 wi-fi routers this VS Score is measured against.
Wireless
Ports & wired
Hardware
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the NETGEAR Nighthawk RAX50 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The WAN (internet) port is rated at 1 Gbps. An internet plan faster than that is capped at the router, and nothing on the network can download faster than this port regardless of the wireless figures.
There are 4 LAN ports, all Gigabit; a switch is needed for more wired devices.
Throughput expectations
The Wi-Fi 6 headline of 5,400 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
There is no 6 GHz band, so the least congested spectrum available to new phones and laptops is not on offer here.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
NETGEAR keeps two firmware lines for this model because there are two hardware revisions. The original RAX50, which shares its files with the RAX50S, reached version 1.0.18.146, and the RAX50v2 reached 1.1.7.40, both released on August 10, 2026 as security updates. The web interface checks for new firmware under ADVANCED, Administration, Router Update, so confirm the revision before installing a file by hand.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
VPN support is built in, which avoids a subscription to a third-party VPN router service for remote access.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 2,500 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 25 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: 6 GHz band, multi-gig LAN, built-in security suite.
5 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
The RAX50 data sheet, the user manual and a quick start guide shared with the RAX45 sit on NETGEAR's download server. Per the data sheet's footnotes, Armor needs a paid subscription after its trial, and so does the Premium tier of Smart Parental Controls, while the basic tier is part of the router.
Sources and verification
Where the specifications come from
- Official product pagenetgear.com
- Datasheet or manualdownloads.netgear.com
- Support and firmware documentationkb.netgear.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 23 of 28 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Wi-Fi Routers with similar specs to the NETGEAR Nighthawk RAX50
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The NETGEAR Nighthawk RAX50 earns a VS Score of 27, below the median of the 26 wi-fi routers it is measured against (a score of 50 is level with that median).
- Who it’s for
- A medium-sized home on a gigabit-or-slower plan with several Wi-Fi 6 laptops and phones that can use the wide channels this radio supports.
- Who should look elsewhere
- Anyone on a multi-gig internet plan, because the WAN port is the bottleneck, anyone who needs mesh to cover a large house, and anyone expecting Armor or the paid parental-control tier to stay free.
- The trade-off that matters
- You get one of the stronger 5 GHz radios in its class sitting behind a WAN port that caps what can be fed to it. The router is faster than the pipe it accepts, and that only becomes more true as plans get quicker.
- The main alternative
- TP-Link Archer BE230: a dual-band Wi-Fi 7 router with a multi-gig WAN port, for buyers who would rather have a modern WAN than extra streams.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable wi-fi routers — a shortlisting guide, not a substitute for your own priorities. See how we score.
