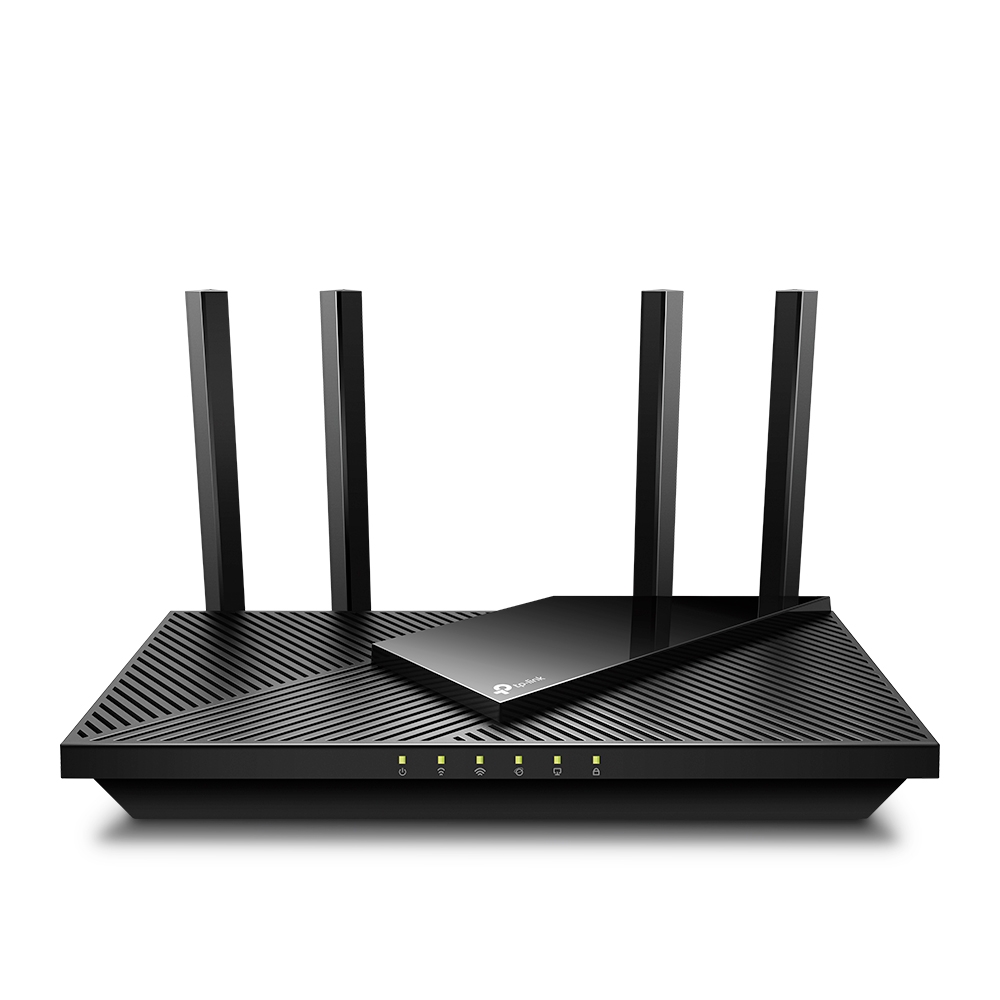

TP-Link Archer AX21 (V5): Specs, Features, Pros & Cons
The Archer AX21 has gone through five hardware revisions under one name, and the V5 drops something earlier buyers relied on. TP-Link's V3 page lists a USB 2.0 port for sharing a drive or printer. The V5 page lists one gigabit WAN port and four gigabit LAN ports with no USB port anywhere in its hardware section, and its processor line still reads "Dual-Core CPU (V4)", so TP-Link does not state which chip the V5 itself uses.
It is still a dual-band AX1800 Wi-Fi 6 router, rated at 1,201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, and both bands run 802.11ax. That second point separates it from TP-Link's Archer AX10, whose lower band still runs 802.11n, and it means a phone that drops to the lower band in a far room keeps its Wi-Fi 6 link there. Four fixed external antennas with beamforming handle range.
WPA3, guest networks on both bands, QoS by device, URL filtering with time controls for children, EasyMesh for adding a compatible extender later and management through the Tether app are all listed, which is more software than the hardware list suggests. The VPN list depends on which TP-Link document you read. The web page names OpenVPN and PPTP servers only, while the V5.6 datasheet adds L2TP and WireGuard, and a firmware release in August 2025 added a VPN kill switch.
Every Ethernet port is gigabit, so a plan faster than that is capped at the router.
Category strengths
Where the TP-Link Archer AX21 (V5) trails the median
- A much lower max wireless speed ?1,775 Mbps vs 7,876 Mbps (median)
- No 6 GHz band ?
- A much lower WAN port speed ?1 Gbps vs 2.5 Gbps (median)
- No multi-gig LAN ?
- Fewer frequency bands ?2 vs 3 (median)
- Fewer USB ports ?0 vs 1 (median)
How this VS Score was computed
Score 16: each known spec is measured against the median of all wi-fi routers (26 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 48% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 7 | 2 | −96.0 |
| Max wireless speed | 1,775 | 7,876 | 2 | −78.0 |
| 6 GHz band | No | 52% of the class have it | 1 | −48.0 |
| WAN port speed | 1 | 2.5 | 1.5 | −45.0 |
| Multi-gig LAN | No | 69% of the class have it | 0.8 | −38.4 |
| Frequency bands | 2 | 3 | 1 | −17.0 |
| USB ports | 0 | 1 | 0.3 | −14.4 |
| LAN ports | 4 | 4 | 1 | +0.0 |
| Antennas | 4 | 4 | 0.3 | +0.0 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (unknown: not scored); OFDMA (standard for the class (100% have it)); Beamforming (standard for the class (100% have it)); Max connected devices (unknown: not scored); Link aggregation (unknown: not scored); Processor cores (unknown: not scored); Processor speed (unknown: not scored); RAM (unknown: not scored); WPA3 (standard for the class (100% have it)); Mesh support (standard for the class (94% have it)); Guest network (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (standard for the class (100% have it)); VPN server (standard for the class (100% have it)); App control (standard for the class (100% have it)); Built-in security suite (unknown: not scored); Weight (unknown: not scored); Wall-mountable (unknown: not scored).
Editor’s note
The V5 sits in an awkward spot in TP-Link's range. Above it, the Archer AX55 has a wider 160 MHz channel on its upper band, a USB 3.0 port and 512 MB of memory that TP-Link publishes. The Archer AX10 below it keeps an 802.11n radio for the lower band. The AX21 is the cheapest of the three that is Wi-Fi 6 on both bands, which counts most in an apartment with far rooms and for newer smart-home gear limited to the lower band.
The USB change is the one to check before buying. TP-Link's own V3 page describes FTP, media and Samba sharing from that port, and the V5 has no port to share from. The V4 page lists no USB either. Read the version on the box label before trusting any setup guide written for this name.
TP-Link's US download page shows the V5.6 going more than a year without a firmware release, while the Archer AX10 V3.6 received a security build in September 2026. That is a slower cadence than its sibling's for a router that sits on the open internet.
The gigabit ports suit the plans this router is likely to meet, and none of them is the bottleneck below a gigabit. The missing USB costs nothing in a household that never plugs anything into a router, and the AX21 remains the plainest way to put Wi-Fi 6 on both bands of a small network.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 26 wi-fi routers this VS Score is measured against.
Wireless
Ports & wired
Hardware
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the TP-Link Archer AX21 (V5) and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The WAN (internet) port is rated at 1 Gbps. An internet plan faster than that is capped at the router, and nothing on the network can download faster than this port regardless of the wireless figures.
There are 4 LAN ports, all Gigabit; a switch is needed for more wired devices.
Throughput expectations
The Wi-Fi 6 headline of 1,775 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
There is no 6 GHz band, so the least congested spectrum available to new phones and laptops is not on offer here.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
TP-Link's US download page for the Archer AX21 V5 lists three firmware releases for the V5.6. The newest is 1.1.2 (Build 20250814), published September 5, 2025. It added a VPN kill switch, and TP-Link says it cannot be downgraded afterward. Because the maker warns that firmware for the wrong hardware version can damage the router, read the version on the label before downloading anything. Updates install from the web page or the Tether app.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
VPN support is built in, which avoids a subscription to a third-party VPN router service for remote access.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Mesh support means coverage can be extended later with a compatible satellite instead of replacing the router.
Known limitations
Not offered, according to the spec sheet: 6 GHz band, multi-gig LAN.
10 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
The V5 support page offers the V5.6 datasheet, an installation and user guide and a V5.60 quick installation guide, plus FAQs, an emulator and the community forum. The AX21 does not use HomeShield, so its protection is the router's own SPI firewall, access control and address binding, and its parental controls are URL filtering and time limits.
Sources and verification
Where the specifications come from
- Official product pagetp-link.com
- Datasheet or manualstatic.tp-link.com
- Support and firmware documentationtp-link.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 18 of 28 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Wi-Fi Routers with similar specs to the TP-Link Archer AX21 (V5)
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The TP-Link Archer AX21 (V5) earns a VS Score of 16, below the median of the 26 wi-fi routers it is measured against (a score of 50 is level with that median).
- Who it’s for
- A small home on a broadband plan up to a gigabit, with a mix of phones, laptops and smart-home gear, that wants Wi-Fi 6 on both bands for as little as possible.
- Who should look elsewhere
- Anyone who planned to share a drive or printer from the router, because this revision has no USB port, and anyone on a multi-gig internet plan.
- The trade-off that matters
- Budget Wi-Fi 6 on both bands, paired with gigabit ports and no USB. It covers a small network well and leaves no headroom for a faster line or a shared drive.
- The main alternative
- TP-Link Archer AX55: a wider upper-band channel, a USB 3.0 port and more published memory, for buyers who can stretch a little.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable wi-fi routers — a shortlisting guide, not a substitute for your own priorities. See how we score.
