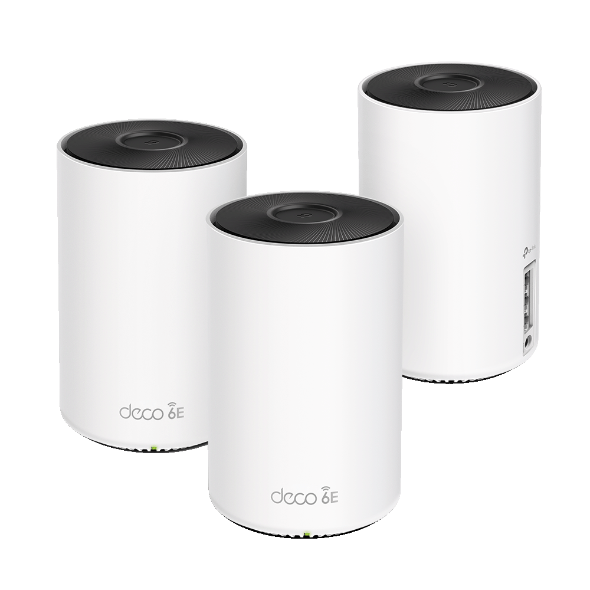

TP-Link Deco XE5300: Specs, Features, Pros & Cons
TP-Link's datasheet gives the Deco XE5300's 6 GHz radio two jobs at once. It carries traffic between the nodes, and it serves Wi-Fi 6E phones and laptops. TP-Link's explanation of the arrangement is that moving mesh traffic up to 6 GHz leaves the older 5 GHz and 2.4 GHz bands to the devices that can only use them.
It is a tri-band Wi-Fi 6E system from the generation before TP-Link's Wi-Fi 7 Decos, sold as a three-pack. Each node has two-stream radios on all three bands and 160 MHz channels on the two faster ones, with 2,402 Mbps signal rates on each of those, so the 6 GHz link alone is rated at well over twice what any of the node's Ethernet ports can carry.
Every node has three gigabit Ethernet sockets, auto-sensing for WAN or LAN, and nothing faster, so a multi-gig internet plan or a wired link between nodes stops at a gigabit. There is no USB port either.
Shared 6 GHz duty is the other limit. When a 6E laptop and the backhaul both want that band near the same node, they take turns, and wiring the nodes together is the way to hand the whole band back to clients.
TP-Link has shipped three US hardware versions, V1, V2 and V3, with firmware specific to each. Its support page warns that loading the wrong file can damage a node and void the warranty.
Category strengths
Where the TP-Link Deco XE5300 beats the median
- A higher coverage area ?7,200 sq ft vs 6,500 sq ft (median)
- A higher units included ?3 vs 2.5 (median)
Where the TP-Link Deco XE5300 trails the median
- No multi-gig WAN ?
How this VS Score was computed
Score 45: each known spec is measured against the median of all mesh wi-fi systems (16 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 75% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6E | Wi-Fi 7 | 2 | −50.0 |
| Tri-band | Yes | 73% of the class have it | 1 | +50.0 |
| Dedicated wireless backhaul | No | 33% of the class have it | 1 | −48.0 |
| 6 GHz band | Yes | 69% of the class have it | 0.8 | +40.0 |
| Multi-gig WAN | No | 75% of the class have it | 0.8 | −38.4 |
| Built-in security suite | No | 44% of the class have it | 0.5 | −24.0 |
| Coverage area | 7,200 | 6,500 | 2 | +10.0 |
| USB port | No | 38% of the class have it | 0.2 | −9.6 |
| Units included | 3 | 2.5 | 0.8 | +8.0 |
| Max wireless speed | 5,320 | 5,360 | 1.5 | +0.0 |
| Max connected devices | 200 | 200 | 0.5 | +0.0 |
| Ethernet ports per unit | 3 | 3 | 1 | +0.0 |
Not scored: Wired backhaul support (standard for the class (100% have it)); WPA3 (standard for the class (100% have it)); App control (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (standard for the class (92% have it)); Guest network (standard for the class (100% have it)); Smart home hub (unknown: not scored); Unit weight (unknown: not scored).
Editor’s note
The closest decision is against TP-Link's entry-level Wi-Fi 7 kit, the Deco BE25. The BE25 has multi-gig ports and no 6 GHz radio, while the XE5300 has a 6 GHz radio and only gigabit ports, which makes this kit the better fit when the fastest devices in the house are recent laptops and phones.
TP-Link rates the three-pack for 7,200 sq ft, describes that as a four to seven-plus bedroom house, and rates the system for 200 devices, both above what it rates the BE25 three-pack for.
Against Google's Nest Wifi Pro, also Wi-Fi 6E, it trades Google's Thread and Matter hub for a third node and a third Ethernet socket per node, and the Deco app adds VPN server and client modes. HomeShield follows TP-Link's usual split, with basic protection and parental controls included and the advanced tier paid.
TP-Link says the XE5300 works with every other Deco model, so a Wi-Fi 7 Deco bought later can take over as the main router and keep these nodes as extensions of the same network.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 16 mesh wi-fi systems this VS Score is measured against.
Wireless
Ports & backhaul
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the TP-Link Deco XE5300 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The pack contains 3 units; the main unit plugs into your modem or existing gateway and the rest are placed around the home.
Wired backhaul is supported: running Ethernet between the units gives every satellite the full speed of the main unit.
Throughput expectations
The Wi-Fi 6E headline of 5,320 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
Firmware and subscriptions
TP-Link lists separate firmware for US hardware V1.60, V2.60 and V3.60. The V3.6 release 1.5.0, published July 20, 2026, added WireGuard VPN, an automatic firmware upgrade setting, a guest network portal and per-device speed limits.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 7,200 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 200 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: dedicated wireless backhaul, multi-gig WAN, built-in security suite, uSB port.
2 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
The support page links the US datasheet and user guide for the three-pack, Deco FAQs, the TP-Link Community forum and TP-Link's technical-support and warranty pages.
Sources and verification
Where the specifications come from
- Official product pagetp-link.com
- Datasheet or manualstatic.tp-link.com
- Support and firmware documentationtp-link.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 19 of 21 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Mesh Wi-Fi Systems with similar specs to the TP-Link Deco XE5300
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The TP-Link Deco XE5300 earns a VS Score of 45, below the median of the 16 mesh wi-fi systems it is measured against (a score of 50 is level with that median).
- Who it’s for
- A large house with several Wi-Fi 6E phones and laptops on a gigabit or slower plan, wanting three nodes with wired sockets at each.
- Who should look elsewhere
- Multi-gig plans and wired setups that need more than a gigabit between rooms, and smart-home households hoping the router will also be a Thread or Matter hub.
- The trade-off that matters
- The 6 GHz radio serves both the mesh link and 6E clients, so the band that makes the kit worth buying is shared unless the nodes are wired.
- The main alternative
- TP-Link Deco BE25: the better choice when the fastest things in the house plug in by cable.
