ASUS RT-BE90U: Specs, Features, Pros & Cons
Every band on the RT-BE90U is 2×2, which means two spatial streams per radio where ASUS's flagships run four. That one detail sets its peak speeds and most of the arguments for and against it, so read it before any headline figure.

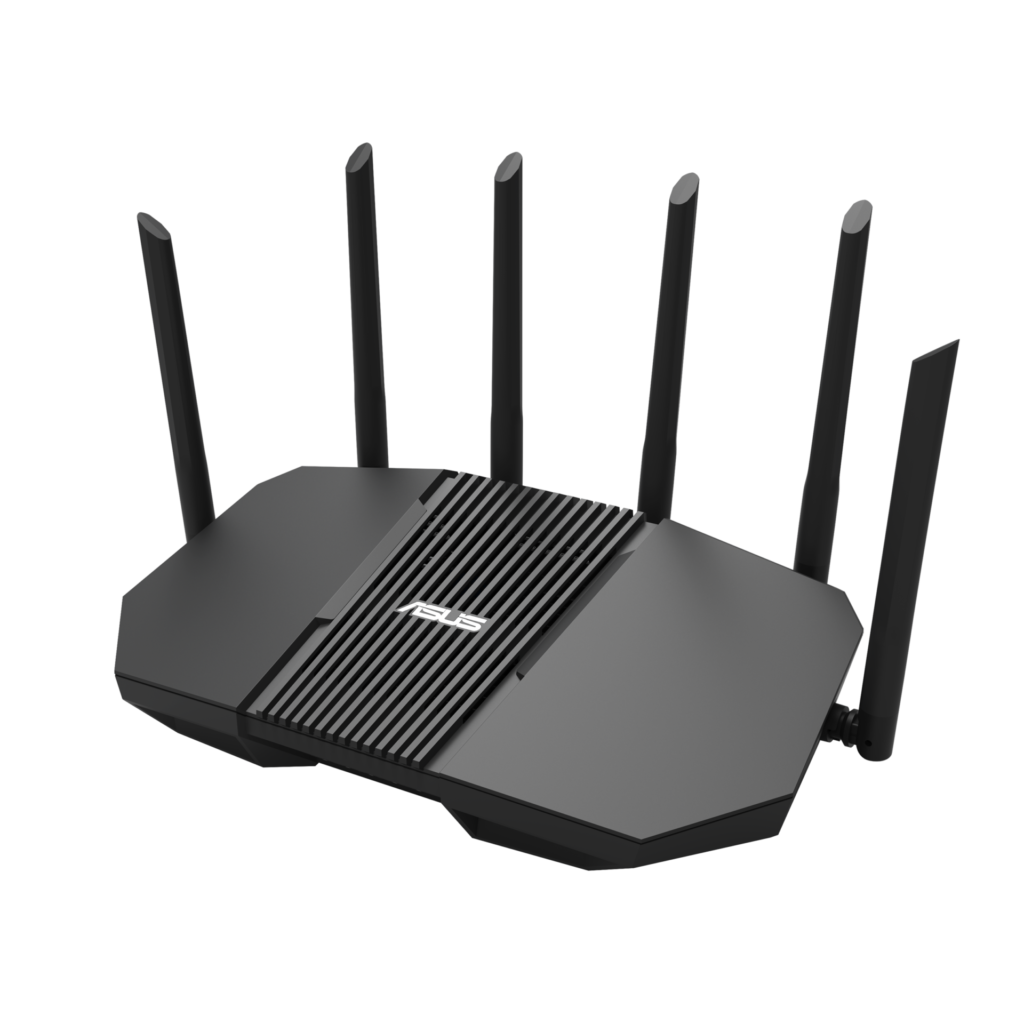

All three Wi-Fi 7 bands are present (2.4, 5 and 6 GHz), which is not a given at this end of the market, where "Wi-Fi 7" is frequently a dual-band product with the interesting band missing. Four ports run at 2.5 Gbps, one WAN and three LAN, so a faster-than-gigabit connection is not throttled the moment it reaches the router. Six external antennas, a quad-core processor, a gigabyte of RAM and a USB 3.2 Gen 1 port sit behind that.
The software is the same ASUSWRT that ASUS ships on its flagships, and it is a substantial part of what is being bought: AiMesh so a second ASUS unit can extend coverage later, Adaptive QoS, up to 64 parental-control profiles, VPN servers for IPSec, OpenVPN, PPTP and WireGuard, and AiProtection security scanning included instead of sold as a recurring subscription.
A 4×4 radio on that top band reaches roughly double the peak link rate of this one, so a client capable of using the full width of Wi-Fi 7 will not be fed as fast here as it would by a flagship.
Read that way, it is a coherent design: full band coverage and modern ports, with peak throughput as the thing deliberately traded away.
Category strengths
Where the ASUS RT-BE90U beats the median
- A higher max wireless speed ?9,334 Mbps vs 7,876 Mbps (median)
- More antennas ?6 vs 4 (median)
Where the ASUS RT-BE90U trails the median
- Fewer LAN ports ?3 vs 4 (median)
How this VS Score was computed
Score 60: each known spec is measured against the median of all wi-fi routers (26 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 60% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| 6 GHz band | Yes | 52% of the class have it | 1 | +50.0 |
| Multi-gig LAN | Yes | 69% of the class have it | 0.8 | +40.0 |
| Built-in security suite | Yes | 52% of the class have it | 0.5 | +25.0 |
| Max wireless speed | 9,334 | 7,876 | 2 | +18.0 |
| LAN ports | 3 | 4 | 1 | −12.0 |
| Antennas | 6 | 4 | 0.3 | +7.5 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Frequency bands | 3 | 3 | 1 | +0.0 |
| WAN port speed | 2.5 | 2.5 | 1.5 | +0.0 |
| USB ports | 1 | 1 | 0.3 | +0.0 |
| Processor cores | 4 | 4 | 0.5 | +0.0 |
| Processor speed | 1.5 | 1.5 | 0.5 | +0.0 |
| RAM | 1,024 | 1,024 | 0.7 | +0.0 |
| Weight | 761 | 762.5 | 0.2 | +0.0 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (standard for the class (100% have it)); OFDMA (standard for the class (100% have it)); Beamforming (standard for the class (100% have it)); Max connected devices (unknown: not scored); Link aggregation (unknown: not scored); WPA3 (standard for the class (100% have it)); Mesh support (standard for the class (94% have it)); Guest network (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (standard for the class (100% have it)); VPN server (standard for the class (100% have it)); App control (standard for the class (100% have it)); Wall-mountable (unknown: not scored).
Editor’s note
The RT-BE90U shows how much of a tri-band Wi-Fi 7 router ASUS can keep at the lower end of its range before something important falls off, and the answer is most of it.
Every band is 2×2, and the BE9400 total is around half what four-stream Wi-Fi 7 flagships advertise. In practice 2×2 matches what phones and laptops have, so the real-world loss is smaller than the number suggests, but if you were hoping to saturate a Wi-Fi 7 desktop adapter, look further up the range.
Three LAN ports is thin for a router at this price. A console, a NAS and a desktop and you are already full. And at 320 x 180 x 191 mm with six antennas raised, it is not a discreet object.
I would choose this if the goal is future-proofing on a budget: a third band to grow into and multi-gig ports throughout. If you need more wired ports or four-stream radios, the money is better spent elsewhere.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 26 wi-fi routers this VS Score is measured against.
Wireless
Ports & wired
Hardware
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the ASUS RT-BE90U and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The WAN (internet) port is rated at 2.5 Gbps. An internet plan faster than that is capped at the router, and nothing on the network can download faster than this port regardless of the wireless figures.
There are 3 LAN ports, at least one of them multi-gig, so one wired device can run above Gigabit speed.
Throughput expectations
The Wi-Fi 7 headline of 9,334 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
The newest RT-BE90U firmware is 3.0.0.6.102_58500, posted on September 23, 2026, and the support page lists four earlier builds back to January 2026. ASUS released the same build numbers on the same dates for the TUF Gaming BE9400, which has the same radio layout, so the two models appear to share one firmware line. Auto Firmware Update is listed among the administration features.
A built-in security suite is on the spec sheet. On most brands the full version is a paid subscription after a trial; check the manufacturer’s page linked under Sources for the current terms.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
VPN support is built in, which avoids a subscription to a third-party VPN router service for remote access.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Mesh support means coverage can be extended later with a compatible satellite instead of replacing the router.
Known limitations
4 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
ASUS calls AiProtection subscription-free, and on this model its spec sheet lists the router security assessment and two-way IPS. The support page carries the English manual, a quick start guide and the firmware downloads, and the ASUS Router app handles setup alongside the web interface.
Sources and verification
Where the specifications come from
- Official product pageasus.com
- Datasheet or manualdlcdnets.asus.com
- Support and firmware documentationasus.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 24 of 28 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Wi-Fi Routers with similar specs to the ASUS RT-BE90U
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The ASUS RT-BE90U earns a VS Score of 60, above the median of the 26 wi-fi routers it is measured against (a score of 50 is level with that median).
- Who it’s for
- Buyers who want all three Wi-Fi 7 bands and multi-gig ports in a mid-range router, and anyone already on ASUS gear who plans to grow the network with AiMesh.
- Who should look elsewhere
- Households with more than three wired devices, and anyone hoping to saturate a 4×4 Wi-Fi 7 client, because every band here is 2×2.
- The trade-off that matters
- You get all three Wi-Fi 7 bands, but each is only 2×2, so peak throughput lands well below four-stream flagships such as the ASUS ROG Strix GS-BE18000.
- The main alternative
- TP-Link Archer BE550: comparable tri-band Wi-Fi 7 with five 2.5G ports instead of four, worth a look if wired capacity is your constraint.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable wi-fi routers — a shortlisting guide, not a substitute for your own priorities. See how we score.
