TP-Link Archer BE9500: Specs, Features, Pros & Cons
TP-Link's footnote to the BE9500 badge says more than the badge. The 9.5 Gbps total, it explains, needs a Wi-Fi 7 client that supports Multi-Link Operation and the 6 GHz band and is joined to all three of the router's radios at the same time. The figure is the sum of 5,765 Mbps on 6 GHz, 2,722 Mbps on 5 GHz and 1,032 Mbps on 2.4 GHz, a combined number that no single radio offers.
Those per-band ratings also show where TP-Link put the money. The 2.4 GHz radio is rated above the 688 Mbps of the dual-band Archer BE230 and BE400, which helps only Wi-Fi 7 clients on that band. The 5 GHz rating is lower than the one the Archer BE400 claims for its own 5 GHz radio, so the case for this router rests on the top band and on the back panel.

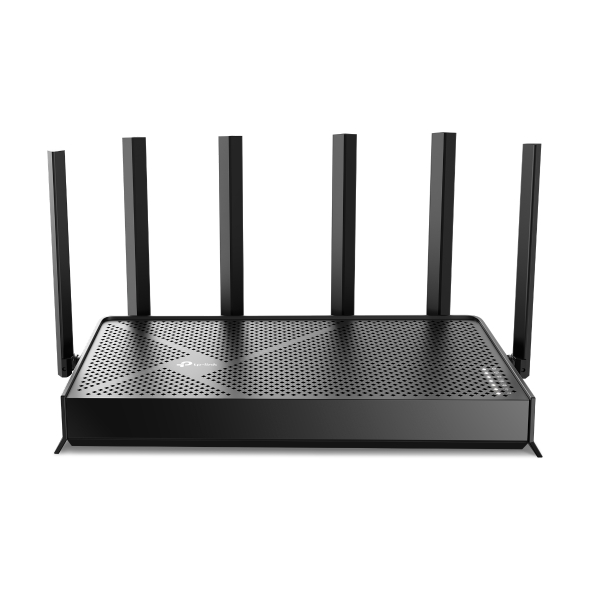

That back panel is unusual for a router of this shape. It has a 10 Gbps port that can serve as WAN or LAN, a second multi-gig port that can also take either role, one more multi-gig LAN port, two gigabit LAN ports and USB 3.0 for a shared drive. All of it sits in a flat chassis about 10.6 inches wide and under 2 inches tall, with six antennas and beamforming.
The software list is TP-Link's current one. EasyMesh lets another compatible router or extender join later, the VPN server and client support includes WireGuard, there is a separate IoT network and QoS by device, and HomeShield's free plan stops at network scans and basic parental filtering.
TP-Link sizes the coverage as "4 Bedroom Houses", which describes a home rather than measuring one.
Category strengths
Where the TP-Link Archer BE9500 beats the median
- A much higher WAN port speed ?10 Gbps vs 2.5 Gbps (median)
- A higher max wireless speed ?9,519 Mbps vs 7,876 Mbps (median)
- More antennas ?6 vs 4 (median)
Where the TP-Link Archer BE9500 trails the median
- No built-in security suite ?
How this VS Score was computed
Score 66: each known spec is measured against the median of all wi-fi routers (26 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 51% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| WAN port speed | 10 | 2.5 | 1.5 | +75.0 |
| 6 GHz band | Yes | 52% of the class have it | 1 | +50.0 |
| Multi-gig LAN | Yes | 69% of the class have it | 0.8 | +40.0 |
| Built-in security suite | No | 52% of the class have it | 0.5 | −24.0 |
| Max wireless speed | 9,519 | 7,876 | 2 | +20.0 |
| Antennas | 6 | 4 | 0.3 | +7.5 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Frequency bands | 3 | 3 | 1 | +0.0 |
| LAN ports | 4 | 4 | 1 | +0.0 |
| USB ports | 1 | 1 | 0.3 | +0.0 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (standard for the class (100% have it)); OFDMA (standard for the class (100% have it)); Beamforming (standard for the class (100% have it)); Max connected devices (unknown: not scored); Link aggregation (unknown: not scored); Processor cores (unknown: not scored); Processor speed (unknown: not scored); RAM (unknown: not scored); WPA3 (standard for the class (100% have it)); Mesh support (standard for the class (94% have it)); Guest network (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (standard for the class (100% have it)); VPN server (standard for the class (100% have it)); App control (standard for the class (100% have it)); Weight (unknown: not scored); Wall-mountable (unknown: not scored).
Editor’s note
Tri-band Wi-Fi 7 routers earn their keep on the 6 GHz band, and that is where I would point anyone weighing this one. The middle radio's rating is respectable and not remarkable, while the 6 GHz radio with its wide channels is the reason to buy Wi-Fi 7 at all. The catch is the one every 6 GHz router shares. That band is short-range and does not pass through walls politely, so the devices that benefit are the ones in the same room, and everything further away falls back to the 5 GHz radio, where this router has no edge over TP-Link's dual-band models.
The wired side is where I think the money is well spent. The fastest port alongside its two multi-gig siblings on the same chassis is unusual outside the gaming-branded tier, and it means a NAS, a workstation and a multi-gig modem can all run fast at the same time. If your house contains none of those, you are paying for ports that will stay empty.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 26 wi-fi routers this VS Score is measured against.
Wireless
Ports & wired
Hardware
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the TP-Link Archer BE9500 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The WAN (internet) port is rated at 10 Gbps. An internet plan faster than that is capped at the router, and nothing on the network can download faster than this port regardless of the wireless figures.
There are 4 LAN ports, at least one of them multi-gig, so one wired device can run above Gigabit speed.
Throughput expectations
The Wi-Fi 7 headline of 9,519 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
The US download page lists hardware version V1.6, and its newest firmware is 1.3.5 (Build 20260630), published August 4, 2026. TP-Link's notes for that build add MLO mesh, let a client be bound to the IoT network, improve EasyMesh and IPv6 stability and fix per-client traffic statistics. Updates are installed from the web interface or the Tether app, and automatic upgrades can be scheduled.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
VPN support is built in, which avoids a subscription to a third-party VPN router service for remote access.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Mesh support means coverage can be extended later with a compatible satellite instead of replacing the router.
Known limitations
Not offered, according to the spec sheet: built-in security suite.
8 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
TP-Link provides a V1.6 user guide, datasheet and quick installation guide for this model, together with FAQs, an interface emulator and the community forum. HomeShield's paid Security+ tier is where IoT protection, web protection and intrusion prevention live, after a 30-day trial, and the free plan covers scans, device identification and basic parental filtering.
Sources and verification
Where the specifications come from
- Official product pagetp-link.com
- Datasheet or manualstatic.tp-link.com
- Support and firmware documentationtp-link.com
- Independent testingrtings.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 20 of 28 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Wi-Fi Routers with similar specs to the TP-Link Archer BE9500
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The TP-Link Archer BE9500 earns a VS Score of 66, above the median of the 26 wi-fi routers it is measured against (a score of 50 is level with that median).
- Who it’s for
- Someone already past a gigabit on their internet plan, or with a NAS and a workstation that both want more than an ordinary multi-gig port gives, who would rather buy the wired headroom once than twice.
- Who should look elsewhere
- Anyone on a gigabit or slower line connecting only laptops, phones and a television. Nothing in that house can use the fast port or the third band, and a dual-band Wi-Fi 7 router will feel identical.
- The trade-off that matters
- The 6 GHz band carries the headline speed but barely survives a wall, so the fast radio is a same-room radio. Plan the router's position around where the fast devices sit, not around the middle of the house.
- The main alternative
- TP-Link Archer BE230: the sensible step down if the wired ports would sit empty, with dual-band Wi-Fi 7 and a 2.5 Gbps WAN port for households that have not outgrown a gigabit.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable wi-fi routers — a shortlisting guide, not a substitute for your own priorities. See how we score.
