BrosTrend XA2: Specs, Features, Pros & Cons

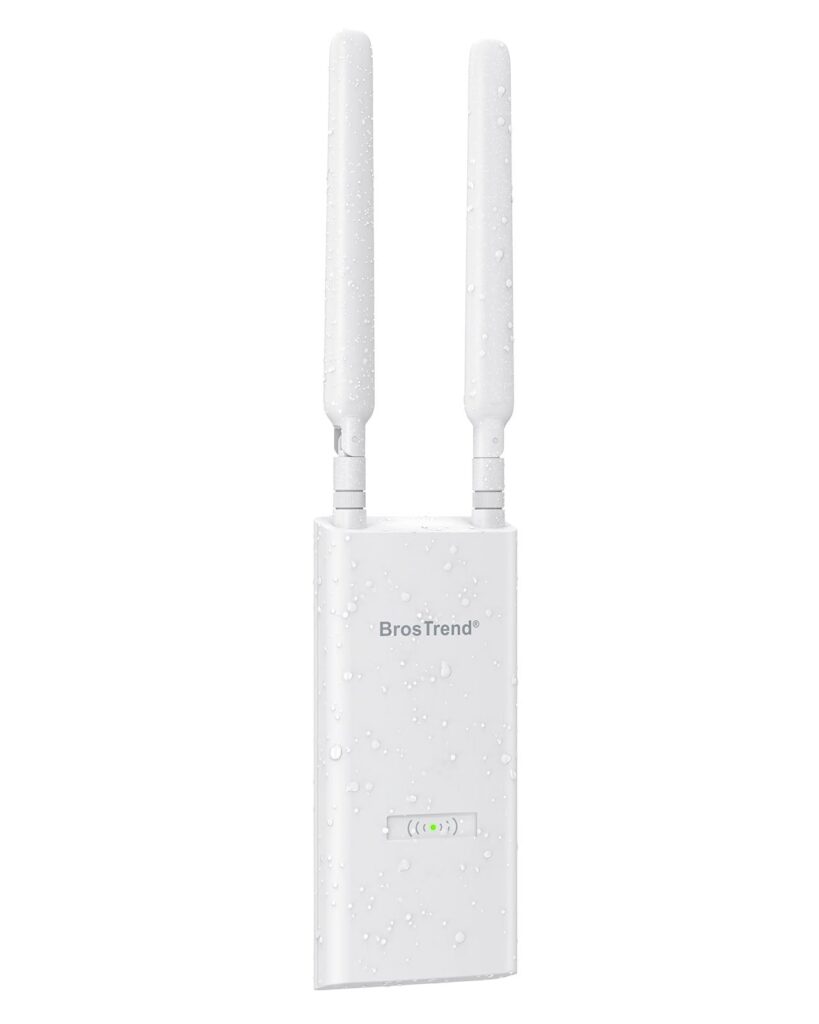

The XA2 is BrosTrend's outdoor Wi-Fi 6 access point, an AX3000-class unit that BrosTrend rates at 2,402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz from a MediaTek MT7981 chipset with two streams per band, 160 MHz channels, OFDMA and MU-MIMO, and up to 80 connected devices. It is the shape a garden AP has been for a decade: a white IP65 box with two detachable 5 dBi dual-band omni antennas on RP-SMA connectors, a grounding terminal, 6 kV lightning and 8 kV ESD protection, and a temperature rating from minus 22 to 140 degrees Fahrenheit.
Power and data arrive over one gigabit PoE port on up to 100 m of Cat5e, from the included passive injector or from an 802.3at or 802.3bt switch. BrosTrend warns that 802.3af may not cover its 16.8 W. The injector's voltage is one of the sheet's ambiguities, 24 V on BrosTrend's spec image and 48 V on its printed guide and adapter label. The guide and the label describe the hardware in the box, so plan around their figure. Transmit power in the US is up to 28 dBm on 2.4 GHz and 26 dBm on 5 GHz.
Management is the honest limit. There is a local web interface at brostrendwifi.com with exactly two modes, access point and extender, WPA3 security, and nothing else: no app, no cloud, no controller, no mesh, and no mention of 802.11k/v/r roaming, VLANs or a guest network. Mounting is wall or pole with the pre-attached bracket and an anti-theft screw, and there is no ceiling option. BrosTrend publishes no coverage figure, dimensions or weight.
The box is complete: AP, antennas, gaskets, bracket, power adapter, injector, an outdoor PoE cable, ties and screws. It is the AP for a yard, barn or garage on a home network that wants a weatherproof radio with a simple web page, and a UniFi outdoor unit is the answer for anyone who wants it managed with the rest of the house.
Category strengths
Where the BrosTrend XA2 beats the median
- Has outdoor rated ?
- A lighter build ?408.5 g vs 562 g (median)
Where the BrosTrend XA2 trails the median
- No controller management ?
- Fewer max concurrent clients ?80 vs 300 (median)
- A lower max wireless speed ?2,976 Mbps vs 4,988 Mbps (median)
- A much lower ethernet port speed ?1 Gbps vs 2.5 Gbps (median)
How this VS Score was computed
Score 24: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 69% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 7 | 2 | −66.0 |
| 6 GHz band | No | 40% of the class have it | 0.8 | −38.4 |
| Controller management | No | 93% of the class have it | 0.8 | −38.4 |
| Max concurrent clients | 80 | 300 | 1 | −37.0 |
| Max wireless speed | 2,976 | 4,988 | 1.5 | −30.0 |
| Ethernet port speed | 1 | 2.5 | 1 | −30.0 |
| Standalone mode | Yes | 58% of the class have it | 0.5 | +25.0 |
| Outdoor rated | Yes | 40% of the class have it | 0.3 | +15.0 |
| Ceiling mountable | No | 47% of the class have it | 0.3 | −14.4 |
| DC power option | No | 46% of the class have it | 0.2 | −9.6 |
| Weight | 408.5 | 562 | 0.2 | +3.8 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); Seamless roaming (unknown: not scored); VLAN support (unknown: not scored); Guest network (unknown: not scored).
Editor’s note
The XA2 is aimed at a home whose Wi-Fi stops at the back door, where the garden, the garage or a workshop needs covering without buying into a managed system. It is weatherproof, the box has everything down to the outdoor cable, and the two-mode web interface can be set up by anyone who has configured a router once.
Mount it high and point the antennas straight up. The omnis radiate sideways, so an AP screwed to a wall at head height covers less than one on the eave. Keep the included injector indoors, since it is not weatherproof, and run the outdoor cable to the unit. A PoE+ switch can stand in for the injector, but BrosTrend says an 802.3af one may not carry the load.
The second mode matters for a lot of buyers: as an extender it joins the existing Wi-Fi wirelessly and rebroadcasts it, which is the no-cable option for a shed, at the usual cost of halved throughput. As an access point on a cable it is a proper second network segment and the better choice wherever a cable can reach.
What it does not do is roam. There is no 802.11k/v/r on the sheet, no controller and no mesh, so a phone walking from the house AP to this one will hang on to the weak signal until it drops, then reconnect. That is fine on a patio, but on a property where people walk around on video calls it is the reason to look at a managed system.
Against the Ubiquiti U7 Pro Outdoor and the U7 Mesh, the XA2 gives up roaming, controller management and mesh, and needs nothing beyond a web browser to run.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the BrosTrend XA2 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (Passive PoE injector included (48 V), or 802.3at/bt switch; 16.8 W): the switch port or injector feeding it must supply that standard, or it will not start.
It can run standalone without a controller, which suits a single-unit deployment.
The uplink is a 1 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 6 headline of 2,976 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
There is no 6 GHz band, so the least congested spectrum available to new phones and laptops is not on offer here.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
BrosTrend's XA2 download page carries a quick installation guide and a specification table, and no firmware file. The guide covers setup through the access point's local web page in either Extender Mode or Wireless Access Point Mode.
Security support
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Rated for 80 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: 6 GHz band, controller management, ceiling mountable, dC power option.
4 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
Support runs through BrosTrend's contact page, its FAQ help center and a setup video guide. The XA2 product page states a two-year warranty, while BrosTrend's warranty-policy table lists only older models.
Sources and verification
Where the specifications come from
- Official product pagebrostrend.com
- Datasheet or manualcdn.shopify.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 14 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the BrosTrend XA2
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The BrosTrend XA2 earns a VS Score of 24, below the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- Yards, gardens, garages and barns on a home network: a weatherproof Wi-Fi 6 radio with everything in the box and a two-mode web interface anyone can set up.
- Who should look elsewhere
- Properties where people roam between APs on calls, or anyone who wants the outdoor zone managed with the rest of the house, since no roaming standard, controller or mesh is stated.
- The trade-off that matters
- A complete kit against a bare feature list: no cloud, no VLANs, no guest network on the sheet, and a spec page with no coverage, size or weight.
- The main alternative
- Ubiquiti U7 Mesh: an outdoor-rated unit that roams and meshes with a UniFi network, on standard PoE.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
