Zyxel NWA55AXPTP: Specs, Features, Pros & Cons

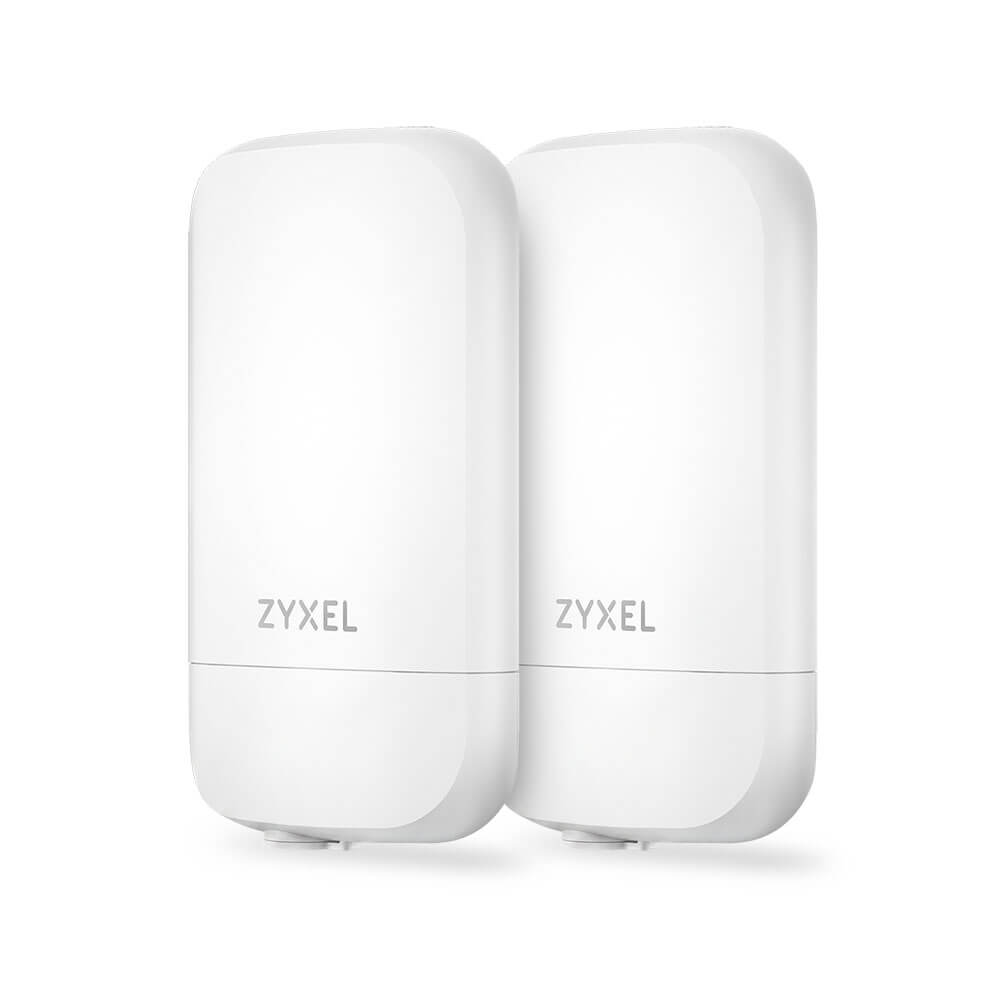

Neither half of the NWA55AX PTP serves phones or laptops. Zyxel sells it as two matched outdoor units that link one building to another over 5 GHz, a point-to-point bridge. The two units arrive factory-paired as a root and a repeater and find each other on power-up, and a LED on the repeater confirms the link, so the work on site is mounting and cabling.
The link is rated for up to 10 km, or 6 miles, at a PHY rate of up to 2,400 Mbps. Each unit has a 2×2 Wi-Fi 6 radio on 5 GHz behind an internal 9 dBi antenna, with a beam 70 degrees wide and 22 degrees tall, and 160 MHz channels for a wider backhaul. A second radio on 2.4 GHz is reserved for management access, so a technician can connect to a unit without touching the bridge traffic.
Each unit is rated for outdoor use from minus 22 to 122 degrees Fahrenheit, measures 180 by 99 by 35.9 mm and weighs 300 g. It mounts on a wall or a pole with integrated hardware.
Both units have a single gigabit Ethernet port and take 802.3af PoE at 12 W, from a switch or a PoE injector included in the box. Management is either standalone, through the local web page and CLI, or through Zyxel's Nebula cloud, with a step-by-step setup in the Nebula mobile app. Zyxel also builds in a filter for 4G and 5G cellular interference, for sites near a mast.
Category strengths
Where the Zyxel NWA55AXPTP beats the median
- Has outdoor rated ?
- A much lighter build ?300 g vs 562 g (median)
Where the Zyxel NWA55AXPTP trails the median
- A much lower max wireless speed ?2,400 Mbps vs 4,988 Mbps (median)
- A much lower ethernet port speed ?1 Gbps vs 2.5 Gbps (median)
How this VS Score was computed
Score 29: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 53% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Wi-Fi standard | Wi-Fi 6 | Wi-Fi 7 | 2 | −66.0 |
| Max wireless speed | 2,400 | 4,988 | 1.5 | −39.0 |
| 6 GHz band | No | 40% of the class have it | 0.8 | −38.4 |
| Ethernet port speed | 1 | 2.5 | 1 | −30.0 |
| Standalone mode | Yes | 58% of the class have it | 0.5 | +25.0 |
| Outdoor rated | Yes | 40% of the class have it | 0.3 | +15.0 |
| Ceiling mountable | No | 47% of the class have it | 0.3 | −14.4 |
| Weight | 300 | 562 | 0.2 | +8.8 |
Not scored: Coverage area (unknown: not scored); Max concurrent clients (unknown: not scored); MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); DC power option (unknown: not scored); Controller management (standard for the class (93% have it)); Seamless roaming (standard for the class (100% have it)); VLAN support (standard for the class (100% have it)); Guest network (unknown: not scored).
Editor’s note
The radio link is rated at more than twice the speed of the gigabit Ethernet port at each end, so a gigabit is the ceiling for anything crossing it. The wide channel buys margin on a long or marginal path more than extra speed, which is still a fair reason to have it on a bridge.
Line of sight decides whether the 10 km figure means anything. A long 5 GHz link needs a clear view between the two units, and trees, roofs or a rise in the ground in between cut the usable distance well before the rated figure. The wide horizontal beam is what lets Zyxel promise setup without careful alignment, and it also means each unit hears a broad slice of whatever else is on 5 GHz in that direction.
Zyxel rates the housing IP55, lower than BrosTrend's IP65 XA2, so an exposed coastal or very dusty site deserves a sheltered mounting spot. The low power draw is a plus: any basic PoE port runs it, and the included injector covers a building without a PoE switch.
Ubiquiti's Building-to-Building Bridge is the UniFi alternative for runs of a few hundred meters, rated to 500 m, and the Zyxel kit is the one for longer distances. It also arrives with the pairing already done, and for a farm, a warehouse yard or a detached office within sight of the main building, that is most of the job.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Zyxel NWA55AXPTP and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (802.3af, 12 W (injector included)): the switch port or injector feeding it must supply that standard, or it will not start.
It can run standalone without a controller, which suits a single-unit deployment.
The uplink is a 1 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 6 headline of 2,400 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
There is no 6 GHz band, so the least congested spectrum available to new phones and laptops is not on offer here.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
Zyxel's download library lists firmware 7.12(ACSQ.0)C0 for the NWA55AX PTP, posted July 29, 2026, with release notes and checksums, after 7.11(ACSQ.0)C0 in April and 7.10(ACSQ.4)C0 in January.
Security support
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Known limitations
Not offered, according to the spec sheet: 6 GHz band, ceiling mountable.
4 specifications are not published by the manufacturer and are shown as Unknown rather than guessed.
Support and updates
The same library carries the quick start guide, a user's guide and a CLI reference for firmware 7.12, the data sheet and certification documents. Questions go through Zyxel's support center and community forum, and Zyxel publishes security advisories for its products on zyxel.com.
Sources and verification
Where the specifications come from
- Official product pagezyxel.com
- Datasheet or manualdownload.zyxel.com
- Support and firmware documentationzyxel.com
- Retailer listing (cross-check)amazon.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 14 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the Zyxel NWA55AXPTP
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Zyxel NWA55AXPTP earns a VS Score of 29, below the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- Linking a barn, warehouse or second building to the main network across open ground without trenching cable, by someone who wants a pre-paired kit and almost no setup.
- Who should look elsewhere
- Anyone looking for outdoor Wi-Fi coverage. The kit carries a link between two Ethernet ports and serves no phones or laptops, and a blocked line of sight undoes the range.
- The trade-off that matters
- A wide, easy-to-aim beam and a pre-paired setup, with a wired port at each end that caps whatever the radio link can carry.
- The main alternative
- Ubiquiti UniFi Building-to-Building Bridge: a 60 GHz kit with a backup radio for shorter runs, managed with the rest of a UniFi network.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
