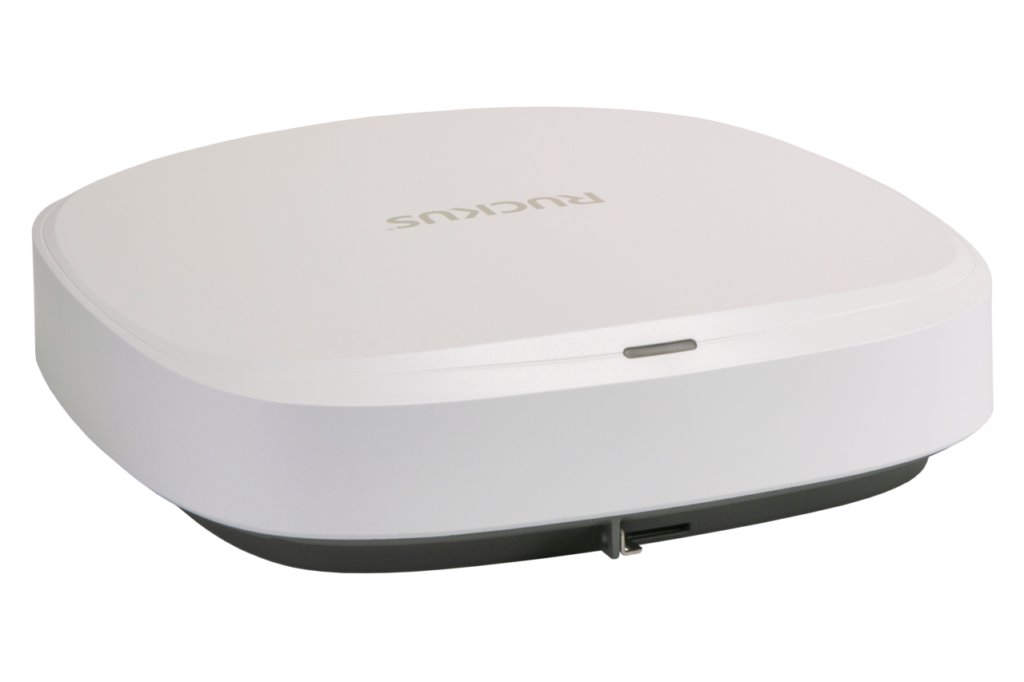

Ruckus R770: Specs, Features, Pros & Cons
The R770 is Ruckus's tri-band Wi-Fi 7 indoor access point, and it is enterprise equipment in every line of its sheet. Eight spatial streams are split 2×2 on 2.4 GHz, 4×4 on 5 GHz and 2×2 on 6 GHz, for peak PHY rates of 689, 5,765 and 5,765 Mbps, which Ruckus rounds to 12.22 Gbps. It supports Multi-Link Operation, 4K QAM, 320 MHz channels, preamble puncturing and both Low Power Indoor and AFC Standard Power on 6 GHz. Ruckus rates it for 1,024 clients and 36 SSIDs per unit, numbers aimed at lecture halls and hotel floors rather than living rooms.
The antenna system is the Ruckus signature: BeamFlex+ adaptive antennas with polarization diversity, more than 4,000 patterns per band and up to 4 dBi of gain, with peak transmit power of 26, 28 and 25 dBm across the three bands. Wired backhaul is a 10 GbE PoE port that negotiates 100 Mbps through 10 Gbps, plus a second 1 GbE port, a USB 2.0 host port and an onboard BLE and Zigbee IoT radio with Matter and Thread promised in firmware.
Power is the practical constraint. It wants 802.3bt or PoH at 32 W average and 40 W peak, or a 48 V DC adapter that is sold separately. On an 802.3at PoE+ switch it drops to a reduced 25.5 W mode. Management is where Ruckus differs from consumer brands: RUCKUS One in the cloud, SmartZone on premises, a controller-less mode, or plain standalone, all with SmartMesh meshing on every band, 802.1Q VLANs and VLAN pooling, 802.11r/k/v roaming, captive portal and Hotspot 2.0, and WPA3, OWE, DPSK3, WIPS and a TPM 2.0 secure-boot chain.
It is 233 x 233 x 59 mm, 1.36 kg, plenum rated for indoor use, and ships with a T-bar ceiling bracket and a limited lifetime warranty. Ruckus publishes no coverage figure and sells through partners, so the Amazon listing is a reseller offer. It is the AP for a managed enterprise network that already runs Ruckus, not a first access point for a house.
Category strengths
Where the Ruckus R770 beats the median
- A much higher ethernet port speed ?10 Gbps vs 2.5 Gbps (median)
- More max concurrent clients ?1,024 vs 300 (median)
- A much higher max wireless speed ?12,219 Mbps vs 4,988 Mbps (median)
- Has 6 GHz band ?
- Has ceiling mountable ?
- Has DC power option ?
Where the Ruckus R770 trails the median
- A much heavier build ?1,360 g vs 562 g (median)
How this VS Score was computed
Score 79: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 63% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Max wireless speed | 12,219 | 4,988 | 1.5 | +75.0 |
| Ethernet port speed | 10 | 2.5 | 1 | +50.0 |
| 6 GHz band | Yes | 40% of the class have it | 0.8 | +40.0 |
| Max concurrent clients | 1,024 — capped at the class’s upper range (512) | 300 | 1 | +35.0 |
| Standalone mode | Yes | 58% of the class have it | 0.5 | +25.0 |
| Ceiling mountable | Yes | 47% of the class have it | 0.3 | +15.0 |
| Outdoor rated | No | 40% of the class have it | 0.3 | −14.4 |
| DC power option | Yes | 46% of the class have it | 0.2 | +10.0 |
| Weight | 1,360 | 562 | 0.2 | −5.8 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
Not scored: Coverage area (unknown: not scored); MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); Controller management (standard for the class (93% have it)); Seamless roaming (standard for the class (100% have it)); VLAN support (standard for the class (100% have it)); Guest network (standard for the class (100% have it)).
Editor’s note
I would only point someone at the R770 if they already run Ruckus, or are about to deploy a building's worth of access points and have a partner quote in hand. Bought singly from a reseller listing, it is an overbuilt way to get Wi-Fi 7 into a house, and half of its feature list (SmartZone, VLAN pooling, DPSK3, WIPS, the IoT radio) needs a managed network around it to mean anything.
In use, the first thing to check is the switch. This AP wants 802.3bt power, and a PoE+ port will run it in a reduced mode with the second Ethernet port and USB switched off and lower transmit power, which looks like a faulty unit until you read the data sheet. The DC adapter is a separate part and is not in the box.
The second thing is management. The controller-less mode lets a small site run without SmartZone or RUCKUS One, and standalone mode exists, but the value of a Ruckus AP is the BeamFlex antenna behavior under a real controller with many clients. A single unit in a home is a very capable but under-used radio.
What it does better than anything consumer-grade is density: a client rating in four figures, adaptive antennas that steer around interference, and roaming that works across dozens of units. For a school, a clinic or a hotel floor that is the whole point.
Against the Ubiquiti U7 Pro XG, this has twice the streams on the middle band and a much stronger enterprise feature list. Against Fortinet's FortiAP 221K it adds a third band. Buy it as part of a Ruckus network. For a home, the U7 Pro XG is the honest answer.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Ruckus R770 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (PoE++ (802.3bt), 40 W peak; limited on 802.3at): the switch port or injector feeding it must supply that standard, or it will not start.
A DC power input is also available for locations without PoE.
It can run standalone without a controller, which suits a single-unit deployment.
The uplink is a 10 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 7 headline of 12,219 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
The R770 page on support.ruckuswireless.com recommends the SmartZone 7.2.0 LT-GA release, with the AP 7.2.0 Patch 1, as its technology release. The same downloads list carries builds for Ruckus's controller-less mode and a standalone (Solo) AP image for the R770, plus RUCKUS One firmware release notes, so the image to install depends on which management mode the site runs.
Security support
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
Rated for 1,024 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: outdoor rated.
One specification is not published by the manufacturer and is shown as Unknown rather than guessed.
Support and updates
That support page also holds quick setup guides in several languages and the release notes for each software train. Ruckus sells the R770 with a limited lifetime warranty, through authorized partners.
Sources and verification
Where the specifications come from
- Official product pageruckusnetworks.com
- Datasheet or manualwebresources.vistancenetworks.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 17 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the Ruckus R770
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Ruckus R770 earns a VS Score of 79, above the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- Managed enterprise networks in schools, clinics, hotels and offices that run or are deploying Ruckus and need tri-band Wi-Fi 7 with high client density and adaptive antennas.
- Who should look elsewhere
- A home or a single-AP site, which gets partner-channel support and features that only exist under a controller. It also needs 802.3bt power to run fully.
- The trade-off that matters
- A full enterprise radio and management stack, in exchange for buying through partners, a reseller-only Amazon listing and a power requirement most home switches cannot meet.
- The main alternative
- Ubiquiti U7 Pro XG: tri-band Wi-Fi 7 with a 10 GbE uplink on a UniFi network, sold through Ubiquiti's own store instead of a partner.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
