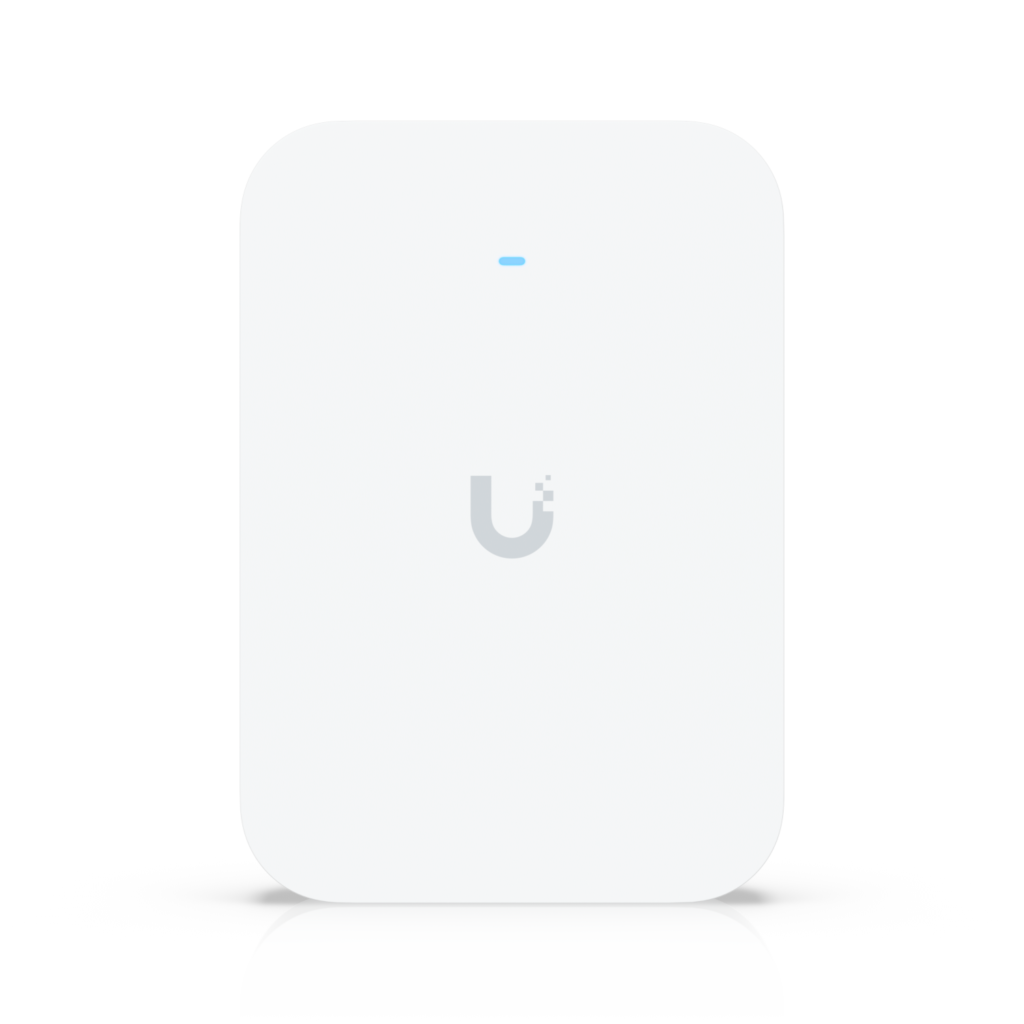

Ubiquiti U7 Pro XG Wall: Specs, Features, Pros & Cons
Ubiquiti's U7 Pro XG Wall puts the U7 Pro XG's three radios and 10 GbE port into a flat box that screws to a wall, for rooms where a ceiling disc cannot go. Hallways, hotel rooms, classrooms with concrete ceilings and offices in rented space are the obvious cases.
The radio set is the XG's: tri-band Wi-Fi 7 with two streams on each of 2.4, 5 and 6 GHz, peaks of 5.8 Gbps on a 320 MHz channel at 6 GHz, 4.3 Gbps at 240 MHz on 5 GHz and 688 Mbps on 2.4 GHz. The middle band's antenna is rated at 6 dBi, one more than on the ceiling disc. Ubiquiti gives it the same rated area of 1,500 sq ft and 300 or more clients.
The single RJ45 port also negotiates slower multi-gig and gigabit links, and it takes PoE+, with the access point drawing 22 W at most. There is no second port for a TV box or a desk phone, so the cable in the wall serves the access point and nothing else.
At 155 by 108 by 33.5 mm, it hangs on an aluminum wall mount and is rated for indoor use to 104 degrees Fahrenheit. Adoption needs UniFi Network 10.0 or later, newer than the ceiling XG asks for, and Ubiquiti also lists the UniFi mobile app for setup, along with 802.11k, v and r roaming and wireless meshing. Each radio can carry up to eight network names, and the guest tools include a captive portal, vouchers and private pre-shared keys, which fit the hotel and classroom installs it is shaped for.
Category strengths
Where the Ubiquiti U7 Pro XG Wall beats the median
- A much higher ethernet port speed ?10 Gbps vs 2.5 Gbps (median)
- A much higher max wireless speed ?10,788 Mbps vs 4,988 Mbps (median)
- Has 6 GHz band ?
- A lighter build ?505 g vs 562 g (median)
Where the Ubiquiti U7 Pro XG Wall trails the median
- No standalone mode ?
- A slightly lower coverage area ?1,500 sq ft vs 1,625 sq ft (median)
How this VS Score was computed
Score 61: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 71% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Max wireless speed | 10,788 | 4,988 | 1.5 | +75.0 |
| Ethernet port speed | 10 | 2.5 | 1 | +50.0 |
| 6 GHz band | Yes | 40% of the class have it | 0.8 | +40.0 |
| Standalone mode | No | 58% of the class have it | 0.5 | −24.0 |
| Ceiling mountable | No | 47% of the class have it | 0.3 | −14.4 |
| Outdoor rated | No | 40% of the class have it | 0.3 | −14.4 |
| DC power option | No | 46% of the class have it | 0.2 | −9.6 |
| Coverage area | 1,500 | 1,625 | 1 | −4.0 |
| Weight | 505 | 562 | 0.2 | +1.2 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Max concurrent clients | 300 | 300 | 1 | +0.0 |
Not scored: MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); Controller management (standard for the class (93% have it)); Seamless roaming (standard for the class (100% have it)); VLAN support (standard for the class (100% have it)); Guest network (standard for the class (100% have it)).
Editor’s note
The 10 GbE port only matters if the switch behind it is multi-gig. On a 2.5 GbE PoE+ switch, the XG Wall negotiates down and becomes a U7 Pro Wall with a faster port it cannot use, and the U7 Pro Wall has the same three radios, the same rated area and the same power draw. Ubiquiti's spec pages put the U7 Pro Wall at 580 g against 505 g for this model, so the faster version is also the lighter one.
Where the switch is multi-gig above that, the port earns its keep the same way it does on the ceiling XG. The 6 GHz radio's top link rate is more than twice what the slower port carries, and a client in the same meeting room or hotel suite is where that rate is reachable.
The wall position is the compromise to think through. A ceiling disc sits above the furniture and people. A wall unit at desk or door height has bodies and cabinets in its path, so in an open office the ceiling XG will usually cover the floor better and the Wall belongs in rooms where it faces the space it serves.
The software requirement is the one practical trap. A controller still running an older UniFi Network release will not adopt it until it is upgraded to 10.0, so an older console or self-hosted install needs that step first.
I would only choose it over the U7 Pro Wall with a multi-gig PoE+ switch already in the rack.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Ubiquiti U7 Pro XG Wall and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (PoE+ (802.3at)): the switch port or injector feeding it must supply that standard, or it will not start.
It is managed through the manufacturer’s controller and does not run standalone, so budget for the controller (hardware or hosted) as part of the deployment.
The uplink is a 10 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 7 headline of 10,788 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
Ubiquiti's download center lists access point firmware 8.7.11, published August 31, 2026, for the U7 Pro XG Wall alongside the XG, XGS, Pro Wall, Pro Max and Pro Outdoor. Adoption needs UniFi Network 10.0 or later, and the UniFi mobile app (iOS 10.29.3, Android 10.31.1 or later) is listed as well.
Security support
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 1,500 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 300 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: standalone mode, ceiling mountable, outdoor rated, dC power option.
Support and updates
Documentation is the web installation guide at dl.ui.com/qig/u7-pro-xg-wall and the tech-spec page. Warranty and RMA requests go through help.ui.com.
Sources and verification
Where the specifications come from
- Official product pagetechspecs.ui.com
- Datasheet or manualdl.ui.com
- Support and firmware documentationui.com
- Retailer listing (cross-check)amazon.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 18 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the Ubiquiti U7 Pro XG Wall
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Ubiquiti U7 Pro XG Wall earns a VS Score of 61, above the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- UniFi sites that need a wall-mounted access point and already have multi-gig PoE+ switching to make the faster port count.
- Who should look elsewhere
- Anyone without a multi-gig switch, who gets the same radios in the U7 Pro Wall, and anyone wanting a wall unit with spare Ethernet jacks for a TV or desk phone.
- The trade-off that matters
- A multi-gig uplink in a wall box, which only pays off with a multi-gig switch and 6 GHz clients close enough to use it.
- The main alternative
- Ubiquiti U7 Pro XG: the same radios and port as a ceiling disc, wherever a ceiling mount is possible.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
