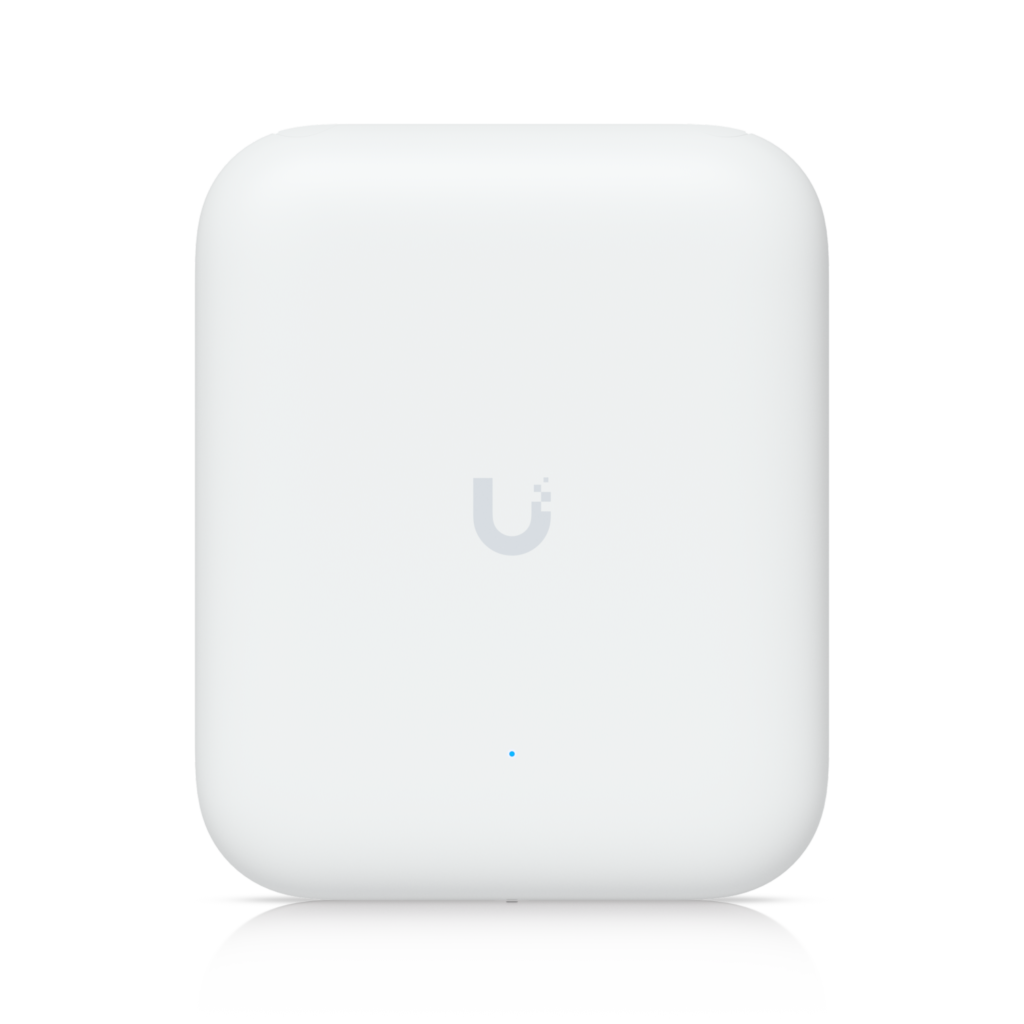

Ubiquiti U7 Pro Outdoor: Specs, Features, Pros & Cons
Ubiquiti builds the U7 Pro Outdoor around AFC, the location database that lets a fixed outdoor access point use the 6 GHz band at standard power, and it lists the extended-range 6 GHz mode for the US and Canada only. The dual-band U7 Outdoor, its nearest sibling, has no such radio.
It is a tri-band Wi-Fi 7 access point with two streams on each band, six in all, behind an internal directional antenna that Ubiquiti calls a super antenna. The spec sheet gives that antenna a 90 by 45 degree beam on 6 and 5 GHz, and also lists gains for external omni antennas on 5 and 2.4 GHz, with a 360 degree pattern for coverage all around a pole. Ubiquiti rates one unit for 5,000 sq ft and 300 or more clients.
The housing is IPX6 as delivered and IP67 with the cable-gland door kit fitted, rated from minus 22 to 140 degrees Fahrenheit, and it weighs 1.2 kg before the articulating bracket goes on. Wall and pole mounts come in the box, and four blue mesh-signal LEDs on the side help line it up when it links to another UniFi access point over the air.
Power and data share one 1/2.5 GbE port on PoE+, at up to 21 W. Management runs through the UniFi Network application or the UniFi mobile app, with 802.11k, v and r roaming, guest portals and VLANs handled like on Ubiquiti's indoor models.
Category strengths
Where the Ubiquiti U7 Pro Outdoor beats the median
- A much higher coverage area ?5,000 sq ft vs 1,625 sq ft (median)
- A much higher max wireless speed ?10,788 Mbps vs 4,988 Mbps (median)
- Has 6 GHz band ?
- Has outdoor rated ?
Where the Ubiquiti U7 Pro Outdoor trails the median
- No standalone mode ?
- A much heavier build ?1,200 g vs 562 g (median)
How this VS Score was computed
Score 59: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 71% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Max wireless speed | 10,788 | 4,988 | 1.5 | +75.0 |
| 6 GHz band | Yes | 40% of the class have it | 0.8 | +40.0 |
| Standalone mode | No | 58% of the class have it | 0.5 | −24.0 |
| Outdoor rated | Yes | 40% of the class have it | 0.3 | +15.0 |
| Ceiling mountable | No | 47% of the class have it | 0.3 | −14.4 |
| DC power option | No | 46% of the class have it | 0.2 | −9.6 |
| Weight | 1,200 | 562 | 0.2 | −5.4 |
| Coverage area | 5,000 — capped at the class’s upper range (1,750) | 1,625 | 1 | +4.0 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Max concurrent clients | 300 | 300 | 1 | +0.0 |
| Ethernet port speed | 2.5 | 2.5 | 1 | +0.0 |
Not scored: MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); Controller management (standard for the class (93% have it)); Seamless roaming (standard for the class (100% have it)); VLAN support (standard for the class (100% have it)); Guest network (standard for the class (100% have it)).
Editor’s note
A buyer outside the US and Canada gets a tri-band access point whose third band may never run at the reach the extended-range mode is built for, and the U7 Outdoor covers the same rated area on two bands. Inside those two countries, the 6 GHz radio is the reason to choose the Pro Outdoor.
A directional antenna on a wall covers what is in front of it, so a long garden or a sports field wants it at one end pointing down the length, and a courtyard surrounded by buildings is better served by the omni option or by two units. That is a different exercise from hanging a ceiling disc in the middle of a room, and it is worth sketching before choosing the mount.
With the mount it weighs 1.33 kg, and Ubiquiti quotes a wind load of 74.6 N at 200 km/h, so a thin pole or a soft fascia board is the wrong place for it. Ubiquiti's pole range is 25 to 63.5 mm.
Against the U7 Mesh, which is a fraction of the size and takes plain PoE with an adapter in the box, the Pro Outdoor is the unit for open ground and long sight lines. For a patio beside the house, the Mesh covers it, and the 6 GHz radio would sit mostly idle.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Ubiquiti U7 Pro Outdoor and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (PoE+ (802.3at), 21 W max): the switch port or injector feeding it must supply that standard, or it will not start.
It is managed through the manufacturer’s controller and does not run standalone, so budget for the controller (hardware or hosted) as part of the deployment.
The uplink is a 2.5 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 7 headline of 10,788 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
Ubiquiti's download center lists access point firmware 8.7.11, published August 31, 2026, for the U7 Pro Outdoor, the same build as the U7 Pro Wall, Max, XG, XG Wall and XGS. Setup needs UniFi Network 9.0.114 or later, or the UniFi mobile app (iOS 10.20.2, Android 10.21.7 or later).
Security support
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 5,000 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 300 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: standalone mode, ceiling mountable, dC power option.
Support and updates
Documentation is the web installation guide at dl.ui.com/qig/u7-pro-outdoor and the tech-spec page. Warranty and RMA requests go through help.ui.com.
Sources and verification
Where the specifications come from
- Official product pagetechspecs.ui.com
- Datasheet or manualdl.ui.com
- Support and firmware documentationui.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 18 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the Ubiquiti U7 Pro Outdoor
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Ubiquiti U7 Pro Outdoor earns a VS Score of 59, above the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- A UniFi site in the US or Canada that wants 6 GHz across a yard, a lot or a sports field, with a PoE+ switch and a solid wall or pole to carry a heavy unit.
- Who should look elsewhere
- Buyers outside the FCC and IC regions, where the extended-range 6 GHz mode is not offered, and small patios that a light dual-band unit already covers.
- The trade-off that matters
- A third band outdoors, which reaches its full range only where AFC is available, on a heavy box that needs a solid mount.
- The main alternative
- Ubiquiti U7 Mesh: a small dual-band outdoor unit on plain PoE with the adapter in the box, for spaces close to the house.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
