Ubiquiti U7 Pro XG: Specs, Features, Pros & Cons
Most affordable Wi-Fi 7 access points share a quiet flaw: a fast 6 GHz radio bottlenecked behind a 2.5 Gigabit uplink, so the wireless side can generate more traffic than the wire can carry away. This one uplinks at 10 Gigabit, which means its 6 GHz radio and wide channels have somewhere to send what they collect.

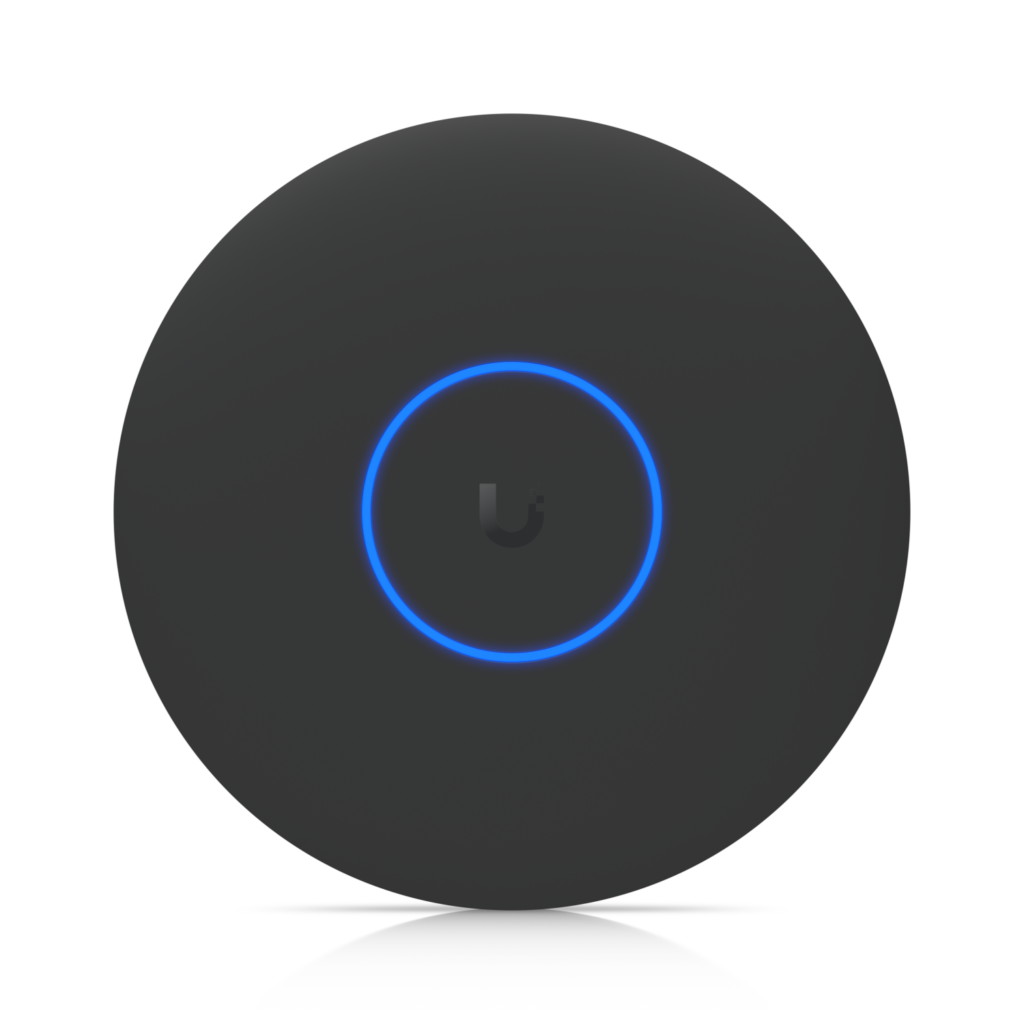

That single pairing is the reason to consider it. It is a ceiling-mounted disc in the familiar mold, with a wall mount as an alternative, rated for around fifteen hundred square feet and a few hundred simultaneous clients, and it supports the fast-roaming standards that let devices move between access points without dropping a call.
Power arrives over Ethernet, and as with the rest of this range it is worth checking that the switch supplying it can deliver what the access point draws before assuming an existing installation will do.
Ubiquiti lists the UniFi Network application as the way to manage it, on a hardware controller or self-hosted software, and the access point has no web interface of its own, so this is a component of a managed network rather than something to plug in on its own. It is also indoor-only and fairly heavy, which matters when planning a ceiling mount.
For a house or office already running this ecosystem, wanting the fastest access point that does not throttle itself at the wire, it is an unusually good match of radio to uplink. Outside that ecosystem, the controller requirement makes it an awkward first purchase.
Category strengths
Where the Ubiquiti U7 Pro XG beats the median
- A much higher ethernet port speed ?10 Gbps vs 2.5 Gbps (median)
- A much higher max wireless speed ?10,788 Mbps vs 4,988 Mbps (median)
- Has 6 GHz band ?
- Has ceiling mountable ?
Where the Ubiquiti U7 Pro XG trails the median
- No standalone mode ?
- A slightly lower coverage area ?1,500 sq ft vs 1,625 sq ft (median)
- A heavier build ?750 g vs 562 g (median)
How this VS Score was computed
Score 64: each known spec is measured against the median of all access points (15 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 71% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Max wireless speed | 10,788 | 4,988 | 1.5 | +75.0 |
| Ethernet port speed | 10 | 2.5 | 1 | +50.0 |
| 6 GHz band | Yes | 40% of the class have it | 0.8 | +40.0 |
| Standalone mode | No | 58% of the class have it | 0.5 | −24.0 |
| Ceiling mountable | Yes | 47% of the class have it | 0.3 | +15.0 |
| Outdoor rated | No | 40% of the class have it | 0.3 | −14.4 |
| DC power option | No | 46% of the class have it | 0.2 | −9.6 |
| Coverage area | 1,500 | 1,625 | 1 | −4.0 |
| Weight | 750 | 562 | 0.2 | −2.6 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Max concurrent clients | 300 | 300 | 1 | +0.0 |
Not scored: MU-MIMO (standard for the class (100% have it)); PoE powered (standard for the class (100% have it)); Controller management (standard for the class (93% have it)); Seamless roaming (standard for the class (100% have it)); VLAN support (standard for the class (100% have it)); Guest network (standard for the class (100% have it)).
Editor’s note
Over the 10 GbE uplink, the top band's 5.8 Gbps radio and its 320 MHz channels have somewhere to go, and that uplink is what the XG adds over the standard U7 Pro.
It's a ceiling-mount disc in the classic UniFi mold (a wall mount works too, and the low-profile bracket is included), with proper fast-roaming support (802.11k, v and r) for a home with several access points. Power is ordinary PoE+ at up to 22 W, so any decent PoE switch drives it. There's no injector in the box and no DC jack, so plan on an injector or a PoE port.
Two design decisions define who it's for. First, the radios are 2×2 on every band, six streams total. That's a density-and-roaming design, and a 4×4 enterprise AP will beat it one-on-one. Second, there is no standalone web interface. This is a UniFi managed device, so plan on a controller: a Dream Router, Cloud Key, or the self-hosted Network application. If that sentence sounds like homework, a consumer mesh kit will make you happier.
For a wired-backbone house or small office building out UniFi coverage, I think it's the obvious pick at the price, especially paired with a multi-gig PoE switch. Buy the standard U7 Pro instead if your switch tops out at 2.5 GbE anyway, and skip UniFi entirely if nobody wants to run a controller.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 15 access points this VS Score is measured against.
Wireless
Ports & power
Management
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the Ubiquiti U7 Pro XG and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
Powered over Ethernet (802.3at (PoE+), 22 W max): the switch port or injector feeding it must supply that standard, or it will not start.
It is managed through the manufacturer’s controller and does not run standalone, so budget for the controller (hardware or hosted) as part of the deployment.
The uplink is a 10 Gbps Ethernet port; the wired side of the network caps everything the access point can pass through.
Throughput expectations
The Wi-Fi 7 headline of 10,788 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
OFDMA and MU-MIMO help most when many devices are active at once; they do not make a single download faster.
Firmware and subscriptions
Ubiquiti's download center lists access point firmware 8.7.11, published August 31, 2026, as a single build for the U7 Pro XG and its siblings (Pro Wall, Pro Max, Pro Outdoor, XG Wall and XGS, in white and black), with release notes on the UniFi community releases page. Updates are pushed from the UniFi Network application, which Ubiquiti lists at version 9.0.114 or later for the white unit and 9.1.120 or later for the black one.
Security support
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
VLAN support allows work, IoT and guest traffic to be separated on the wired side.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 1,500 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 300 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: standalone mode, outdoor rated, dC power option.
Support and updates
Ubiquiti publishes a web installation guide for the U7 Pro XG at dl.ui.com, a tech-spec page on techspecs.ui.com and the firmware archive on its download center. Help articles, warranty and RMA requests run through help.ui.com.
Sources and verification
Where the specifications come from
- Official product pagetechspecs.ui.com
- Datasheet or manualdl.ui.com
- Support and firmware documentationui.com
- Retailer listing (cross-check)amazon.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 18 of 18 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Access Points with similar specs to the Ubiquiti U7 Pro XG
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The Ubiquiti U7 Pro XG earns a VS Score of 64, above the median of the 15 access points it is measured against (a score of 50 is level with that median).
- Who it’s for
- UniFi homes and small offices building multi-AP coverage: the 10 GbE uplink lets the fastest radio stretch its legs, and 11k/v/r roaming is proper. Pair it with a multi-gig PoE switch.
- Who should look elsewhere
- Anyone without (or unwilling to run) a UniFi controller, since there's no standalone web UI, and buyers whose switch tops out at gigabit, which would strand this AP's whole reason for existing.
- The trade-off that matters
- Streams versus uplink: Ubiquiti spent the budget on a 10 GbE port instead of 4×4 radios, so it suits many-device density and roaming rather than single-client speed records. Know which one you need.
- The main alternative
- Ubiquiti UDR7: if you're starting from zero, the Dream Router 7 bundles the controller, gateway and Wi-Fi 7 radios in one box, and U7 Pro XG units can join later as coverage grows.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable access points — a shortlisting guide, not a substitute for your own priorities. See how we score.
