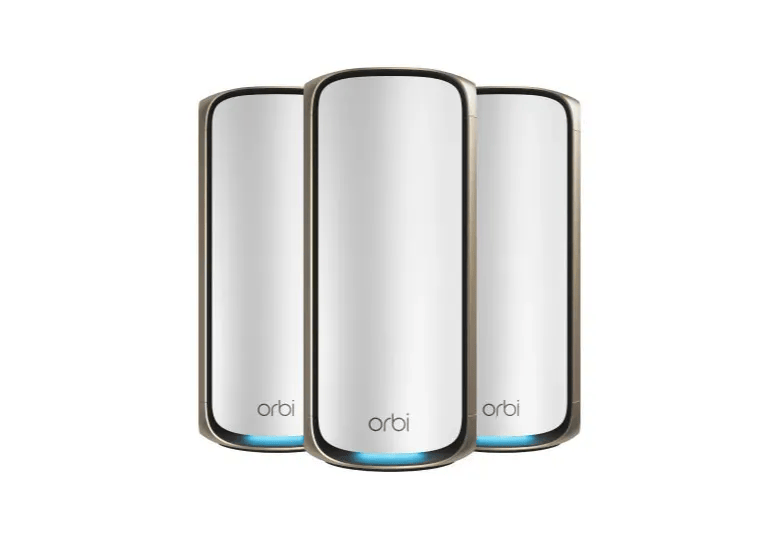

NETGEAR Orbi 970: Specs, Features, Pros & Cons
The defining feature is a band the satellites keep largely to themselves. Most mesh systems make node-to-node traffic share airtime with your devices. Here a 5 GHz radio is reserved for the backhaul and strengthened by pairing it with the 6 GHz band, which is why this system holds its speed across distance where mesh without a reserved band sags.
Everything else is scaled to match: quad-band Wi-Fi 7 with sixteen streams, 10 Gbps Ethernet on every unit including the internet-facing port, a three-pack rated for a very large house and a couple of hundred devices. NETGEAR rates the router and each satellite for 3,300 sq ft apiece, so the 10,000 sq ft on the box is roughly the three figures added together. If the requirement is fast wireless across a big property with no cabling, this belongs on a shortlist of two or three systems.
Each unit weighs close to two kilograms and is correspondingly large, so these are not discreet objects to place casually on a shelf.
There is no USB port and no smart-home hub radio, so it does not consolidate anything beyond networking.
The clearest way to decide is to ask whether you can run Ethernet between node locations. With cable runs, a system with strong wired ports and no reserved backhaul will do a similar job. Without them (a large older house, solid walls, no realistic cable routes), the dedicated backhaul is what you are buying, and no amount of wired ports on another system stands in for it.
Category strengths
Where the NETGEAR Orbi 970 beats the median
- A much higher max wireless speed ?27,000 Mbps vs 5,360 Mbps (median)
- A much higher coverage area ?10,000 sq ft vs 6,500 sq ft (median)
- Has dedicated wireless backhaul ?
- Has built-in security suite ?
- A higher units included ?3 vs 2.5 (median)
Where the NETGEAR Orbi 970 trails the median
- A much higher unit weight ?1,790 g vs 801 g (median)
How this VS Score was computed
Score 73: each known spec is measured against the median of all mesh wi-fi systems (16 products), then weighted; 50 means level with that median. In classes of six or more, a value beyond the class’s 10th–90th percentile range counts as that limit, so one extreme product cannot set the scale. 78% of the scoreable weight could be used; unknown values, features not applicable to this class and proxies (battery capacity where a rated life exists) add or remove nothing.
| Specification | This product | Cohort median | Score weight | Points moved |
|---|---|---|---|---|
| Max wireless speed | 27,000 — capped at the class’s upper range (17,981) | 5,360 | 1.5 | +75.0 |
| Tri-band | Yes | 73% of the class have it | 1 | +50.0 |
| Dedicated wireless backhaul | Yes | 33% of the class have it | 1 | +50.0 |
| 6 GHz band | Yes | 69% of the class have it | 0.8 | +40.0 |
| Multi-gig WAN | Yes | 75% of the class have it | 0.8 | +40.0 |
| Built-in security suite | Yes | 44% of the class have it | 0.5 | +25.0 |
| Coverage area | 10,000 — capped at the class’s upper range (8,100) | 6,500 | 2 | +24.0 |
| Smart home hub | No | 40% of the class have it | 0.3 | −14.4 |
| USB port | No | 38% of the class have it | 0.2 | −9.6 |
| Units included | 3 | 2.5 | 0.8 | +8.0 |
| Unit weight | 1,790 — capped at the class’s upper range (1,341) | 801 | 0.2 | −4.0 |
| Wi-Fi standard | Wi-Fi 7 | Wi-Fi 7 | 2 | +0.0 |
| Max connected devices | 200 | 200 | 0.5 | +0.0 |
| Ethernet ports per unit | 3 | 3 | 1 | +0.0 |
Not scored: Wired backhaul support (standard for the class (100% have it)); WPA3 (standard for the class (100% have it)); App control (standard for the class (100% have it)); Parental controls (standard for the class (100% have it)); Quality of Service (QoS) (unknown: not scored); Guest network (standard for the class (100% have it)).
Editor’s note
The Orbi 970 is Netgear's statement piece, rated BE27000 across four bands, and it keeps the feature Orbi has been built around for years: a backhaul the satellites get largely to themselves, boosted here by MLO.
That dedicated backhaul is the honest reason to choose an Orbi. Mesh systems without one, TP-Link's Deco line included, share client radios with inter-node traffic and lean on Ethernet backhaul to compensate. The Orbi keeps its wireless speed even when the satellites are far from any cable, which is exactly the situation mesh is for. Wired backhaul over the multi-gig ports is supported too if your house allows it.
Now the caveats, and they're substantial. Netgear still meters the software: Armor security runs out after a trial (30 days on the Amazon SKU, a year bundled with the RBE973S variant), and the fuller parental controls are a separate subscription. There's no USB port, no conventional QoS controls, and the satellites carry three Ethernet ports to the router's six. The units are handsome but enormous, at 29 cm tall.
Where cable can reach even one satellite, I'd look at a system with fast wired ports and no reserved band, such as the ASUS ZenWiFi BT10, before this one.
Specifications
Quality bars show where each figure sits between the lowest and highest of the 16 mesh wi-fi systems this VS Score is measured against.
Wireless
Ports & backhaul
Features & security
Design
Networking assessment
What the specification table does not say on its own: what this device needs to connect, what speeds are realistic, what costs extra, and where it falls short. Every statement below is read from the verified sheet or written by an editor — nothing is estimated.
Test environment
Research-based assessment: this brief is derived from the manufacturer’s published specifications for the NETGEAR Orbi 970 and the documents listed under Sources and verification. We have not run this unit on our own network, so nothing here is a measurement of ours.
Connection requirements
The pack contains 3 units; the main unit plugs into your modem or existing gateway and the rest are placed around the home.
Wired backhaul is supported: running Ethernet between the units gives every satellite the full speed of the main unit.
Throughput expectations
The Wi-Fi 7 headline of 27,000 Mbps adds together the theoretical peak of every band. A single device connects to one band at a time, so no client ever sees the total, and real-world speeds run well below the link rate even in the same room.
The 6 GHz band is only usable by Wi-Fi 6E or Wi-Fi 7 clients and has noticeably shorter range through walls; older devices stay on the 5 GHz and 2.4 GHz bands.
Firmware and subscriptions
NETGEAR's RBE973S support page lists firmware 12.1.11.15 for both the RBE971 router and RBE970 satellites, released September 4, 2026, which improved satellite stability and fixed a speed test that always showed 0 ms ping. NETGEAR's spec table says the system supports automatic firmware updates.
A built-in security suite is on the spec sheet. On most brands the full version is a paid subscription after a trial; check the manufacturer’s page linked under Sources for the current terms.
Set-up and management run through the manufacturer’s app; check whether a local web interface is offered as well.
Parental controls are listed; on several brands the scheduling and filtering tiers sit behind the same subscription as the security suite.
Security support
WPA3 is supported, the current Wi-Fi encryption standard; devices that only speak WPA2 still connect in mixed mode.
A guest network is available for visitors and smart-home devices, keeping them off the network your computers use.
Security-update cadence is not something manufacturers publish as a specification; see Support and updates below.
Real-world household suitability
The manufacturer rates coverage at 10,000 sq ft. That figure assumes open space; brick, concrete and floors reduce it, and a large or multi-storey home is usually better served by a mesh system than by one router.
Rated for 200 connected devices — a marketing figure, but a useful indication of whether a home full of smart plugs, cameras and phones is within its design.
Known limitations
Not offered, according to the spec sheet: smart home hub, uSB port.
One specification is not published by the manufacturer and is shown as Unknown rather than guessed.
Support and updates
The support page links the user manual, quick start guide and tech spec sheet. NETGEAR's limited warranty applies only to units bought from an authorized reseller and registered, and technical support is free for a specified period.
Sources and verification
Where the specifications come from
- Official product pagenetgear.com
- Datasheet or manualdownloads.netgear.com
- Support and firmware documentationnetgear.com
- Retailer listing (cross-check)amazon.com
Verification
- First published
- Specifications last checked
- Sheet completeness
- 20 of 21 specifications verified; the rest show as Unknown and are never estimated or scored
- Page type
- Product specification page — Compiled from the manufacturer’s published specifications and the cited sources; this is not a hands-on test.
- Basis
- Research-based: specifications and editorial text were compiled from the documents listed here and the manufacturer’s published data. We have not tested this unit ourselves; where independent measurements are mentioned they belong to the linked publication.
Mesh Wi-Fi Systems with similar specs to the NETGEAR Orbi 970
Ratings & reviews
No reviews yet. Be the first to share your experience.
The bottom line
The NETGEAR Orbi 970 earns a VS Score of 73, above the median of the 16 mesh wi-fi systems it is measured against (a score of 50 is level with that median).
- Who it’s for
- Large, unwired homes on multi-gig plans where Wi-Fi is the bottleneck: the reserved-band backhaul keeps satellite speeds up precisely where Ethernet isn't an option, and 10G ports on every unit future-proof the wired side.
- Who should look elsewhere
- Anyone who can run Ethernet between rooms, because wired backhaul erases most of this system's advantage over simpler mesh kits, and buyers allergic to subscriptions, since Armor security and the fuller parental controls both expire into paid tiers.
- The trade-off that matters
- The dedicated wireless backhaul is most of what sets it apart. In a house where nodes can be wired, it adds very little, and in one where they can't, it's the entire product.
- The main alternative
- TP-Link Deco BE67: most of the throughput, and with a couple of Ethernet runs for backhaul the practical gap to the Orbi narrows dramatically.
The VS Score is calculated from the weighted specifications above, each measured against the median of comparable mesh wi-fi systems — a shortlisting guide, not a substitute for your own priorities. See how we score.
